CCT Wireless Wallplate
Features
WiFi Control (requires LL-WiFiBox)
$69.19 Inc GST
9 in stock
LL-WP-CCT
Description
This Wireless Wallplate allows you to remotely control CCT LED strip light. Because there are no wires it can be mounted virtually anywhere. Making it ideal for both new and existing installations. The wallplate can control up to 4 individual zones, such as the kitchen, dining room, lounge room and outdoor area.
Multiple receivers and wallplates can be paired to create an almost infinite network of LED strip lighting. These devices use MESH network with 30m signal range.
Specifications
Function | CCT (warm to cool white) |
---|---|
Control | Wallplate – Wireless use with receivers |
Channels | 1 ∼ 4 |
Voltage (uses batteries) | 3V 2x AAA |
Standby Power | N/A |
Output Type | N/A |
Transmission Frequency | 2.4GHz |
Modulation Method | GFSK |
Transmission Power | 6dBm |
Transmission Distance | 30m |
Connection (input) | N/A |
Connection (output) | N/A |
Working Temp. | -20 ∼ 60°C |

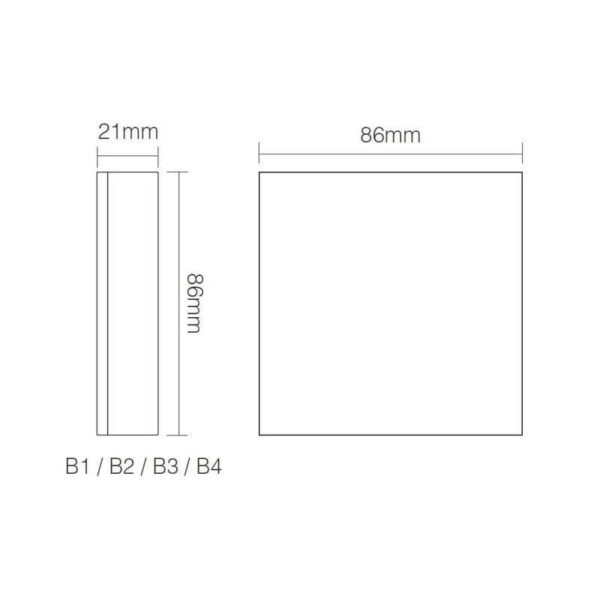

Dimensions | 86 x 86 x 33mm |
Downloads
