80W 24V DC 3.33A Linear Dali Dimmable LED Driver | uPowerTek BSR-080-V024-ANE
46 in stock
|Quantity||Price (Excl GST), Models can be mixed for quantity pricing. Contact us for mixed quantity pricing.|
|1 - 4||$59.90|
|5 - 9||$55.95|
|10 - 19||$52.35|

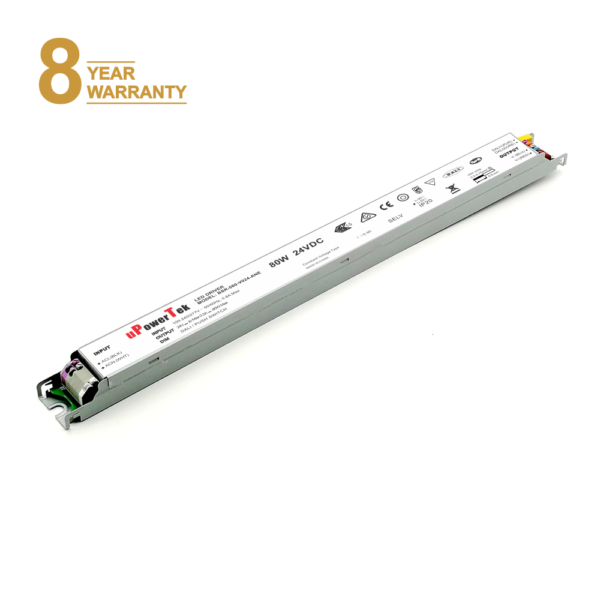

uPowerTek’s BSR-080-V024-ANE is a 80W 24V DC constant voltage DALI / PUSH dimmable linear LED driver with a current output up to 3.33A. With class leading features, this driver is the ultimate choice when it comes to operating Linear LED Lights or other constant voltage LED lighting.
This Dali driver features the new 0.1% dimming protocol, which uPowerTek was the first to implement in a LED driver.
With ultra low inrush current these drivers are ideally suited to installations where there are many drivers used, so as to avoid tripping circuit protections.
uPowerTek’s BSD series Linear LED drivers offer some of the most advanced features available on the market. These include; industry leading 8 year warranty, 100,000hr lifetime, 10kV surge protection, ultra compact design and high operating temperature.
Designed in a ultra slim linear housing, this driver is ideally used within a linear light fitting.
These linear drivers are available in non Dimmable and 0∼10V, DALI/Push dimming. All dimmable models feature PWM output.
Why is PWM output important? PWM dimming does not require load matching, this means you will always have consistent, full range dimming regardless of driver capacity and/or load. It also allows for identical dimming levels using different size drivers operated by the same dimmer. Meaning, you can have a 150W driver operating a 90W load and a 100W driver operating a 90W load, with both LED luminaries dimming at the same rate. Offering 0-100% dimming and no flicker.
uPowerTek BSD-080-V024-ANE 80W 24V LED Driver
- Constant voltage: 24V DC
- Max. output power: 80W
- Ultra low inrush current: 2A
- High efficiency
- Wide input voltage range
- 10kV surge protection
- Slim linear design
- Nominal life-time of 100,000hr @ Tc=75℃
- 8 year warranty @ Tc=75℃
- Over temperature
The BSR CV series are available in both 55W & 80W.
Linear Lux is the Australian uPowerTek Distributor
Who is uPowerTek?
|Model Number||Input Voltage Range||Output Power||Output Voltage||Output Current||Dimming Method||12V Aux||Dim-Off Power|
|BSR-080-V024-NNE||90~305 VAC||80 W||24 V||5.0 A||None||No||–|
|BSR-080-V024-DNE||90~305 VAC||80 W||24 V||5.0 A||0~10V||No||<1.5 W|
|BSR-080-V024-ANE||90∼305 VAC||80 W||24 V||5.0 A||DALI/PUSH||No||<1.5 W|
|Voltage||90 ∼ 305 VAC / 127 ∼ 250 VDC|
|Current||0.5 A (max) @ 220 VAC [Full Load] |
0.9 A (max) @ 110 VAC [Full Load]
|Inrush Current||2 A (peak) 1.2ms, <0.25A2s @ 230 VAC [Cold start] |
4 A (peak) 1.3ms, <0.50A2s @ 277 VAC [Cold start]
|Leakage Current||0.75 mA (max) @ 220 VAC 50Hz [IEC61347-1]|
|Power Factor||>0.95 @ 60~100% Load (refer to PF vs Load Curve)|
|THD||<12% @ 60~100% Load (refer to THD vs Load Curve)|
|Dim to Off: <1.5W|
|Dim to Off: <1.5W|
|Surge Protection||Line to line 2kV, line to ground 4kV, IEC 61000-4-5|
|Short Circuit||Recovers once fault removed|
|Over Temperature||Turn off the output when Tc ≧ 105±10℃ |
Auto Recovery When Tc ≦ 70±10℃
|Working Temperature||Tc = -30 ~ +90°C|
|Working Humidity||5 ~ 100% RH|
|L x W x H (24V)||378 x 30 x 21 mm|
|Carton Quantity||56 pieces Carton: 20.5kg, 490 × 370 × 210mm|
|Typical Lifetime||>100,000 hours @ Tc = <75°C (refer to Life vs Tc Curve)|
|MTBF||>350,000 hours @ Tc = < 75°C [MIL-HDBK-217F]|
|Unless specified, all tests were performed @ 25°C room temperature|
- BSR-080-V Rev A Data Sheet (554 KB)
