LED Profile – Surface | Mini | 1415 – 3m

blank

$48.90 Excl GST

Register for Reseller Pricing

80 in stock (can be backordered)

LL-PR-SM-1415
LED Profile | LED Aluminium Extrusion
  • Description
  • Specifications
  • Downloads
  • Notes
  • Reviews (0)

Description

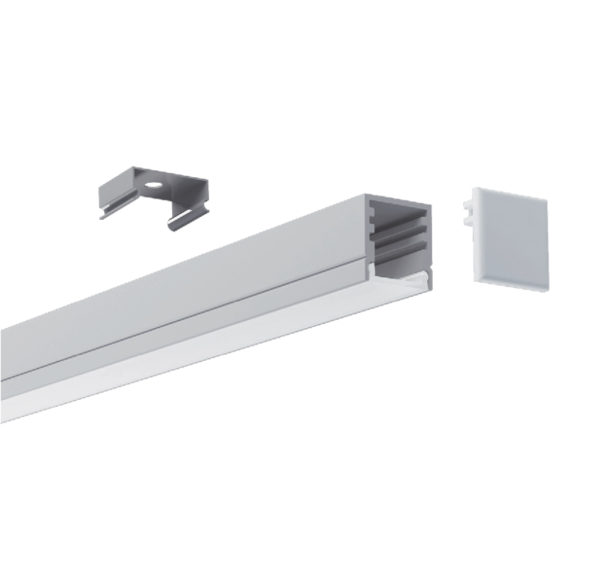

This mini / deep size LED aluminium profile is designed to be surface mounted, it offers a clean look to an LED strip light installation.

The aluminium profile is anodised with a matte silver finish.  Each 3m length is supplied with a lens, 3x pairs of end caps and 6x mounting clips.

Whilst the profile adds to the aesthetics of the installation it also offers a number of benefits.  Protection of the LEDs from dust and humidity.  Acts as a heatsink, as higher power LED strip can produce damaging levels of heat.  Heat can quickly shorten the lifespan of LEDs.

Our LED profiles can also be colour matched powder coated to suit your installation.

Other profiles are available to order, MOQ and lead-times may apply.

Specifications

Type
Mounting Surface
Cover Opal (40~30% light transmission) – stocked
Diffuser (80~70% light transmission) – optional*
Clear (95~85% light transmission) – optional*
Profile Colour Oxidised Silver – stocked
Custom Powder Coating – optional*
End Cap Colour White – stocked
Grey – optional*
Black – optional*
Silver – optional*
Material
Profile Aluminium: 6063-T5
Anodised Thickness: 10µm
Cover Polycarbonate (fire rating: V2) UV Resistant
End Caps Polycarbonate (fire rating: V2) UV Resistant
Mounting Brackets Stainless Steel

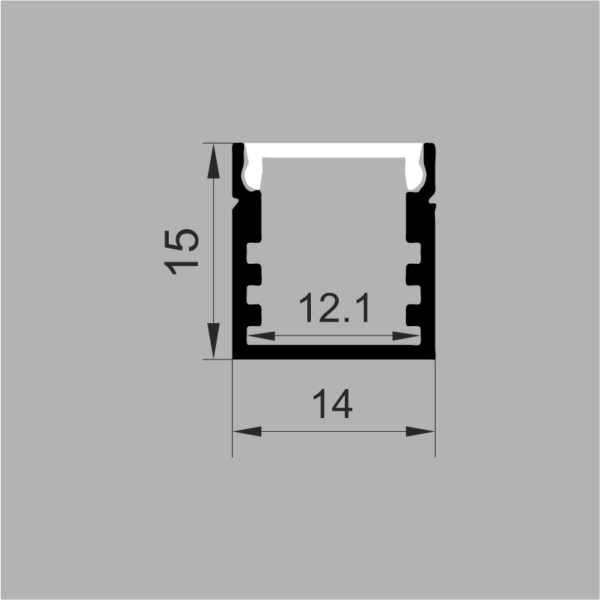

Dimensions
Width (outer) 14.0 mm
Height (outer) 15.0 mm
Width (inner) 12.1 mm
Length 3 m
Max LED tape width 10.0 mm
Accessories
Mounting Clips 6 each
End Caps 3 pairs (3x with cable entry, 3x blank)
*MOQ / lead-time may apply

Downloads

  • LL-PR-SM-1415 Data Sheet (928 KB)
