Recessed LED Profile 65x35
  • Recessed LED Profile 65x35
  • blank
  • blank

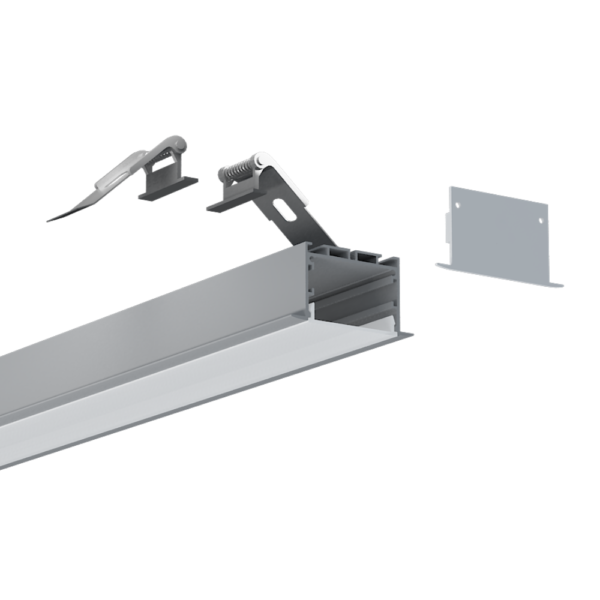

LED Profile – Recessed – Ceiling Mount | Medium | 6535 – 3m

blank

NOTE: As every installation is different, mounting springs and end caps are sold separately.  Contact us to discuss your requirements.

$136.00 – $139.00 Excl GST

Register for Reseller Pricing

Clear
LL-PR-RE-6535
LED Profile | LED Aluminium Extrusion
  • Description
  • Specifications
  • Downloads
  • Notes
  • Reviews (0)

Description

This medium size LED aluminium profile is designed to be mounted in a recess, suitable for both ceiling and wall installations. LED profile offers a clean look and can be a elegant design feature in any space.

The aluminium profile is anodised with a matte black or painted white finish.  Mounting clips and end caps are sold separately to ensure you only buy what you need.

Whilst the profile adds to the aesthetics of the installation it also offers a number of benefits.  Protection of the LEDs from dust and humidity.  Acts as a heatsink, as higher power LED strip can produce damaging levels of heat.  Heat can quickly shorten the lifespan of LEDs.

Our LED profiles can also be colour matched powder coated to suit your installation.

Other profiles are available to order, MOQ and lead-times may apply.

Specifications

Type
Mounting Recessed – Ceiling/Wall
Cover Opal (40~30% light transmission) – indent*
Diffuser (80~70% light transmission) – stocked
Clear (95~85% light transmission) – indent*
Black
Profile Colour White Painted – stocked
Anodised Black – stocked
Custom Powder Coating – optional*
End Cap Colour White – stocked
Grey – indent*
Black – stocked
Silver – indent*
Material
Profile Aluminium: 6063-T5
Anodised Thickness: 10µm
Cover Polycarbonate (fire rating: V2) UV Resistant
End Caps Polycarbonate (fire rating: V2) UV Resistant
Mounting Brackets Stainless Steel
Dimensions
Width (outer) 65.0 mm
Height (outer) 35.0 mm
Width (inner) 50.0 mm
Length 3 m
Max LED tape width 39.0 mm
Accessories
Mounting Clips 6 each
End Caps 3 pairs (3x with cable entry, 3x blank)
*Indent / lead-time may apply

Downloads

  • LL-PR-RE-6535 Data Sheet (1 MB)
