60W 24V DC 2.5A 1-10V Dimmable Linear LED Driver | BOKE BK-MGV060-24V0M



$73.15 Inc GST

Register for Reseller Pricing

18 in stock

BK-MGV060-24V0M
0/1-10V Dimmable 0/1-10V LED Driver 0/1-10V LED Driver Boke LED Driver Slimline Linear LED Drivers Slimline Linear LED Drivers
  • Description
  • Models
  • Specifications
  • Downloads

Description

This BOKE BK-MGV060-24V0m is a 60W 24V DC 2.5A constant voltage, dimmable linear LED driver.   This driver supports 1~100% flicker free dimming from either 1~10V, 10V PWM or Rx dimming controls.



The 12V auxiliary output allows for the integration of other control equipment or sensors, without the need for a separate power supply.  External controllers range from RF, Bluetooth, Zigbee, WiFi modules and daylight or movement sensor.



The slimline linear design allows the MGV series to be mounted directly within LED linear light fittings.  Whilst also suitable for general constant voltage LED applications.



Boke’s MGV series has been manufactured with performance and high reliability at it’s core.



BOKE BK-MGV060-24V0m

Features
  • Constant voltage: 24V DC
  • Max. output power: 2.5A / 60W
  • 1-10V + 10V PWM + Rx dimmable
  • Auxiliary power supply to power control module or sensor (12V 100mA)
  • 1~100% soft dimming and flicker-free
  • High PF, high efficiency, low THD
  • Wide input voltage range
  • Ultra slim linear design (285x30x21mm)
  • Short circuit, overload & no-load protection
  • 5 year warranty



The Boke MGV series is also available in 100W, 150W & 150W +12Aux models

Models

Model Number Input Voltage Range Output Power Output Voltage Output Current Dimming Method 12V Aux
BK-MGV060-24V0m 200~240 VAC 60 W 24 V 2.5 A 1~10V / 10V PWM / Rx No
BK-MGV060-24V0M 200~240 VAC 60 W 24 V 2.5 A 1~10V / 10V PWM / Rx YES

Specifications

OUTPUT
Voltage 24 VDC
Current 2.5 A
Power  60 W
INPUT
Voltage 200 ∼ 240 VAC / 200 ∼ 240 VDC
Current 0.35 A (max) @ 220 VAC [Full Load]
Inrush Current 34.65 A (peak) 256us duration (50 % Ipeak)
Leakage Current 0.7 mA (max) @ 230 VAC
Efficiency 91%(typical)
Power Factor >0.95 (refer to PF vs Load Curve)
THD <10% (refer to THD vs Load Curve)
CONTROL
On/Off, Dimming 1-10V/10V PWM, 100K potentiometer
CONNECTIONS
Input Push terminals
Output Push terminals
PROTECTIONS
Surge Protection L-N: 2KV, L-FG / N-FG: 2KV
Short Circuit Recovers once fault removed
ENVIRONMENT
Working Temperature Tc = -20 ~ +60°C
Working Humidity 5 ~ 85% RH
IP Rating IP20
DIMENSIONS

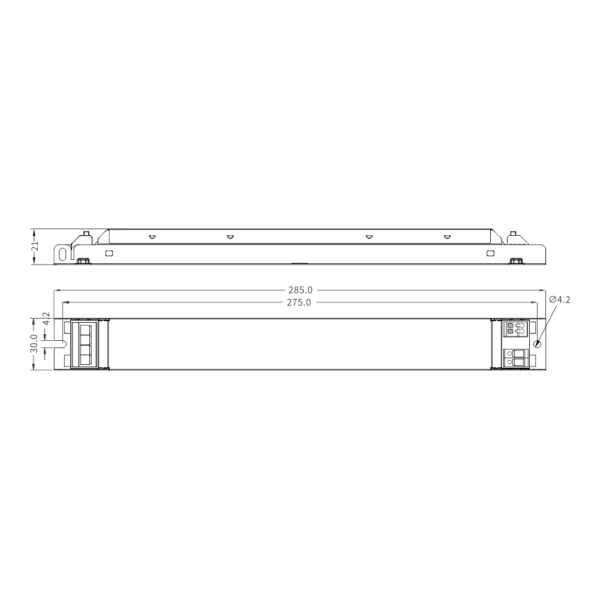

L x W x H (24V) 285 x 30 x 21 mm
Weight 0.250 kg
Carton Quantity 40 pieces    Carton: 11.8kg, 415 × 330 × 190mm (OEM)
OTHER
Class II
Typical Lifetime >100,000 hours (refer to Life vs Tc Curve)
MTBF 500,000H, MIL-HDBK-217F (25℃)
Warranty 5 Years
Approvals RCM (Australia)
Unless specified, all tests were performed @ 25°C room temperature

Downloads

  • Boke MGV Series Data Sheet (2 MB)
