100W 24V DC 4A 1-10V Dimmable +12AUX Linear LED Driver | BOKE BK-MGV100-24V0M
12 in stock (can be backordered)
Description
This BOKE BK-MGV100-24V0m is a 100W 24V DC 4.0A constant voltage, dimmable linear LED driver. Supporting 1~100% flicker free dimming from either 1~10V, 10V PWM or Rx dimming controls.
The 12V auxiliary output allows for the integration of other control equipment or sensors, without the need for a separate power supply. External controllers range from RF, Bluetooth, Zigbee, WiFi modules and daylight or movement sensor.
The ultra slimline linear design allows the MGV series to be mounted directly within LED linear light fittings. Whilst also suitable for general constant voltage LED applications.
Boke’s MGV series has been manufactured with performance and high reliability at it’s core.
BOKE BK-MGV100-24V0m
Features
- Constant voltage: 24V DC
- Max. output power: 4A / 100W
- 1-10V + 10V PWM + Rx dimmable
- Auxiliary power supply to power control module or sensor (12V 100mA)
- 1~100% soft dimming and flicker-free
- High efficiency
- Wide input voltage range
- Slim linear design (355x30x21mm)
- Short circuit, overload & no-load protection
- 5 year warranty
The Boke MGV series is also available in 60W, 150W & 150W +12Aux models
Models
Model Number | Input Voltage Range | Output Power | Output Voltage | Output Current | Dimming Method | 12V Aux |
---|---|---|---|---|---|---|
BK-MGV100-24V0m | 200~240 VAC | 96 W | 24 V | 4.0 A | 1~10V / 10V PWM / Rx | No |
BK-MGV100-24V0M | 200~240 VAC | 96 W | 24 V | 4.0 A | 1~10V / 10V PWM / Rx | YES |
Specifications
OUTPUT | |
---|---|
Voltage | 24 VDC |
Current | 4.0 A |
Power | 96 W |
INPUT | |
Voltage | 200 ∼ 240 VAC / 200 ∼ 240 VDC |
Current | 0.7 A (max) @ 220 VAC [Full Load] |
Inrush Current | 33.7 A (peak) 468us duration (50 % Ipeak) |
Leakage Current | 0.7 mA (max) @ 230 VAC |
Efficiency | 91%(typical) |
Power Factor | >0.95 (refer to PF vs Load Curve) |
THD | <10% (refer to THD vs Load Curve) |
CONTROL | |
On/Off, Dimming | 1-10V/10V PWM, 100K potentiometer |
CONNECTIONS | |
Input | Push terminals |
Output | Push terminals |
PROTECTIONS | |
Surge Protection | L-N: 2KV, L-FG / N-FG: 2KV |
Short Circuit | Recovers once fault removed |
ENVIRONMENT | |
Working Temperature | Tc = -20 ~ +60°C |
Working Humidity | 5 ~ 85% RH |
IP Rating | IP20 |
DIMENSIONS | |

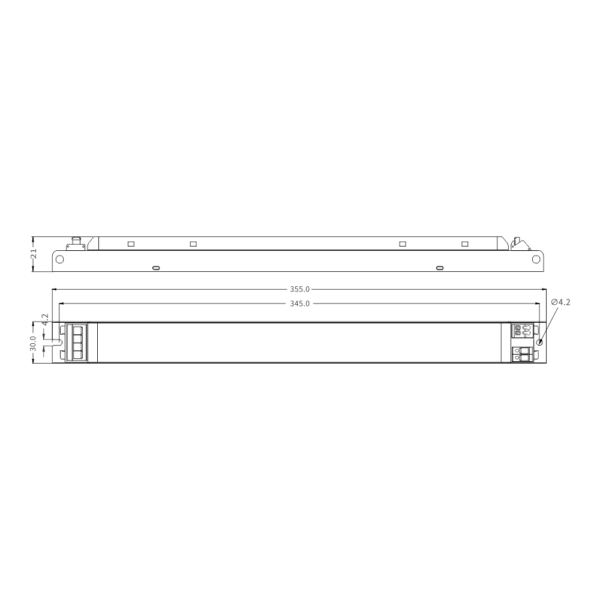

L x W x H (24V) | 355 x 30 x 21 mm |
Weight | 0.288 kg |
Carton Quantity | 35 pieces Carton: 11.8kg, 415 × 330 × 190mm (OEM) |
OTHER | |
Class | II |
Typical Lifetime | >100,000 hours (refer to Life vs Tc Curve) |
MTBF | 500,000H, MIL-HDBK-217F (25℃) |
Warranty | 5 Years |
Approvals | RCM (Australia) |
Unless specified, all tests were performed @ 25°C room temperature |
Downloads
- Boke MGV Series Data Sheet (2 MB)
