LED Profile – Hanging | 5470 – 3m
NOTE: As every installation is different, hanging wire, end caps, straight and corner connectors are sold separately. Contact us to discuss your requirements.
Description

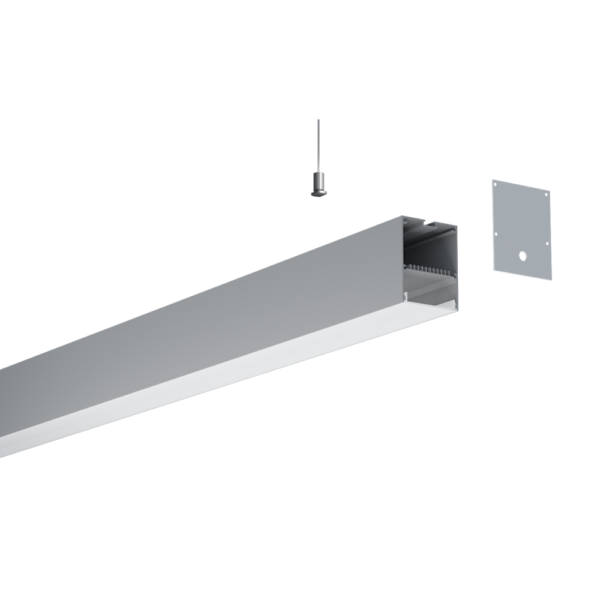

This hanging LED aluminium profile is designed to be suspended from the ceiling. Measuring 54x70mm it’s size makes a statement and provides an elegant feature in any space.
This aluminium profile is stocked in a painted white and anodised black finish. Other finishes can be made available on special order. Hanging wire, end caps, straight and corner connectors are sold separately to ensure you only buy what you need.
Whilst the profile adds to the aesthetics of the installation it also offers a number of benefits. Protection of the LEDs from dust and humidity. Acts as a heatsink, as higher power LED strip can produce damaging levels of heat. Heat can quickly shorten the lifespan of LEDs.
Our LED profiles can also be colour matched powder coated to suit your installation.
Other profiles are available to order, MOQ and lead-times may apply.
Specifications
Type | |
---|---|
Mounting | Hanging |
Cover | Opal (40~30% light transmission) – stocked Diffuser (80~70% light transmission) – stocked Clear (95~85% light transmission) – optional* |
Profile Colour | White – stocked Black – stocked Custom Powder Coating – optional* |
End Cap Colour | White – stocked Grey – optional* Black – stocked Silver – optional* |
Material | |
Profile | Aluminium: 6063-T5 Anodised Thickness: 10µm |
Cover | Polycarbonate (fire rating: V2) UV Resistant |
End Caps | Polycarbonate (fire rating: V2) UV Resistant |
Hanging Kit | Stainless Steel |
Dimensions | |
Width (outer) | 54.0 mm |
Height (outer) | 70.0 mm |
Width (inner) | 65.0 mm |
Length | 3 m |
Max LED tape width | 45.0 mm |
Downloads
- LL-PR-HG-5470 Data Sheet (1 MB)
