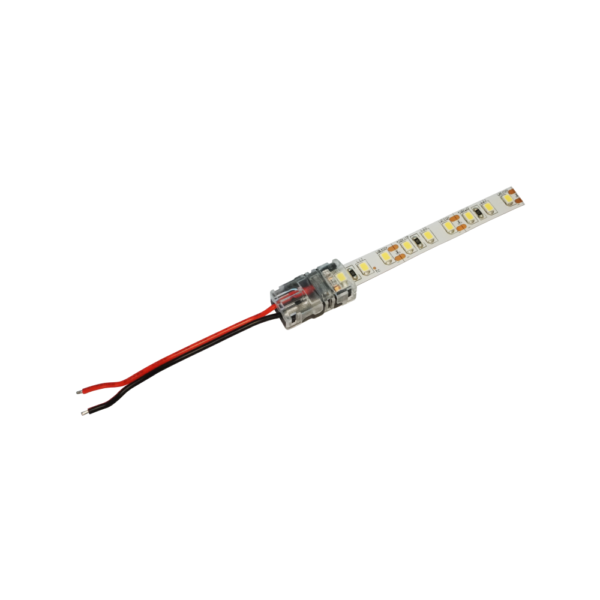

LED Strip Light Connector 10mm 2-Way IP20 | Wire to Strip

  • stripCONNECT
$1.49 Inc GST

Register for Reseller Pricing

147 in stock

LL-SC-10BX2
Connectors LED Strip Light Connectors Standard LED Strip Light Connectors
  • Description
  • Specifications
  • Instructions

Description

Easily connect power wires to LED strip light by using these simple to use, robust connectors. No wire strippers or soldering iron required, just pliers to crimp the connector.



Rather than using metal tabs that make surface contact with the LED strip, these connectors pierce through the FPCB.  This method makes a much more reliable electrical connection as well as firmly securing the FPCB.



Suits 10mm wide, single colour, IP20 (no silicone coating) LED strip light.



To be used with our Static Coloured LED strip light.

Specifications

LL-SC-10BX2
Type Wire to Strip
IP 20 (Non coated LED Strip)
LED Strip Width 10mm
Conductors 2 Pin (Single Colour)
Cable Size 0.34~0.75mm
22~20 AWG
Length 24.3mm
Width 14.6mm
Height 7.7mm
IP Rating 20

Instructions

Step 1

Cut LED Strip along to the desired length





Step 2

Remove backing from double sided tape





Step 3

Insert the LED strip into the connector & close connector with pliers





Step 4

Ensure the cap is fully closed





Step 5

Fully insert all wires into the other side of the connector & close connector with pliers

Note: do not remove the insulation from the wires





Step 6

Ensure the connector is firmly locked together
