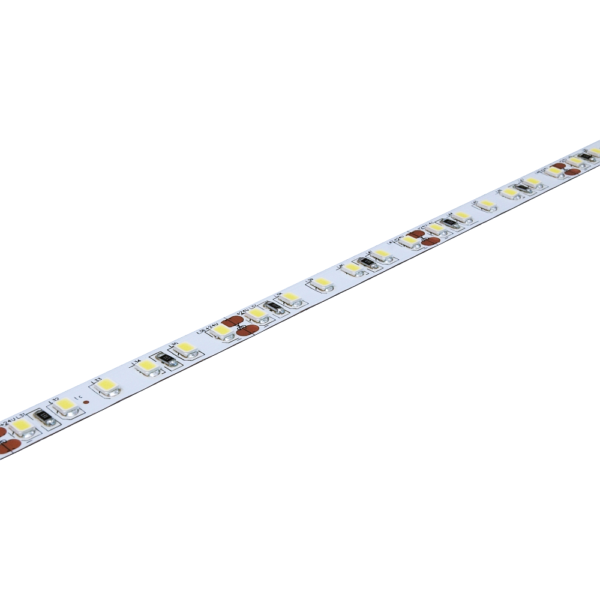

Our Series 5 | 14.4W/m flexible LED strip light is suited to most applications requiring high levels of light, the most common of which is as under cabinet/shelf and room lighting. The thermal efficiency of this LED strip means it does not require a heatsink allowing it to be mounted to almost any smooth hard surface.
This LED strip carries an IP rating of 54, it has a silicone coating to protect it from dust and light water exposure. The silicone coating is UV stable which is resistant to yellowing and deterioration. It is not designed for heavy or prolonged exposure to water, see our IP67 LED strip for high water resistance.
The CRI of the series is >80. We can offer LED strip with a CRI of up to 99.
We have compensated for colour shift.
Colour Consistency: One Bin
Colour consistency is one of the main factors for choosing a high quality LED strip. We can ensure colour consistency by selecting the same BIN per CCT.
Very few other suppliers will tell you which BIN of LEDs your strip has come from, this is important if you need to add to an existing installation. We will also keep a record of the CCT and BIN for all of your orders. The CCT and BIN is also printed on the outer packaging of each LED strip.
See here for the current BIN of each CCT.
|Wattage 1m||14.4 W|
|Current 1m||0.6 A|
|Colour Rendering Index Ra||>80 (90 & 99 avail.)|
|Luminous Flux 1m||1,680 lm|
|Luminous Efficacey||104.2 lm/W|
|Dimmable||1 ∼ 100% (refer data sheet)|
|Construction / Protection Data|
|Substrate||Double layer FPCB|
|Mounting||Double sided tape 3M 9080|
|Operating Temperature||-20 ∼ +70 C°|
|Storage Temperature||-20 ∼ +50 C°|
|Cutting increments||6 LEDs / 50mm|
|Working Life||70,0000 hrs|
