Flexible LED Strip Light | RGB 84 LED/m | 17.1W/m 24V IP67 5M
$125.50 Excl GST
7 in stock
Description

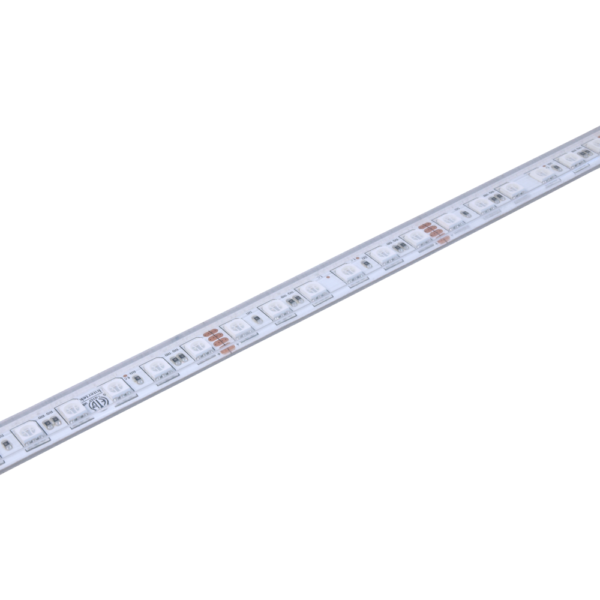

Our RGB (HD) High Density LED strip light uses 84x 5050 RGB LEDs. The high density number of LEDs minimises the visual dottiness and ensures a high brightness vivid colour.
This PCB is made using 3oz copper, this reduces voltage drop, so allows for a continuous 10m length without visible loss of brightness.
Environment
This LED strip carries an IP rating of 67, the LED strip is encased in a flexible silicone tube to protect it from high levels of water exposure. The silicone tube is UV stable which is resistant to yellowing and deterioration. It is designed for heavy or prolonged exposure to water, but not submersion.
Specifications
Electrical Data | |
---|---|
Voltage | 24 VDC |
Wattage 1m | 17.1 W |
Current 1m | 0.72 A |
LED Data | |
Package Type | 5050 |
Chips LED | 3 |
LEDs 1m | 84 |
Pitch | 11.9 mm |
Photometric Data | |
Colour Temperature | RGB |
Colour Rendering Index Ra | N/A |
Luminous Flux 1m | 714 lm |
Luminous Efficacey | N/A |
Beam Angle | 120° |
Dimmable | 1 ∼ 100% (refer data sheet) |
Construction / Protection Data | |
Substrate | Double layer FPCB |
Mounting | Double sided tape 3M 9080 |
IP Rating | IP67 |
Operating Temperature | -20 ∼ +70 C° |
Storage Temperature | -20 ∼ +50 C° |
Dimensions | |
Cutting increments | 6 LEDs / 71.4mm |
Length | 5m |
Width | 12.0mm |
Height | 5.0mm |
Lifetime | |
Working Life | 70,0000 hrs |
Downloads
