Description

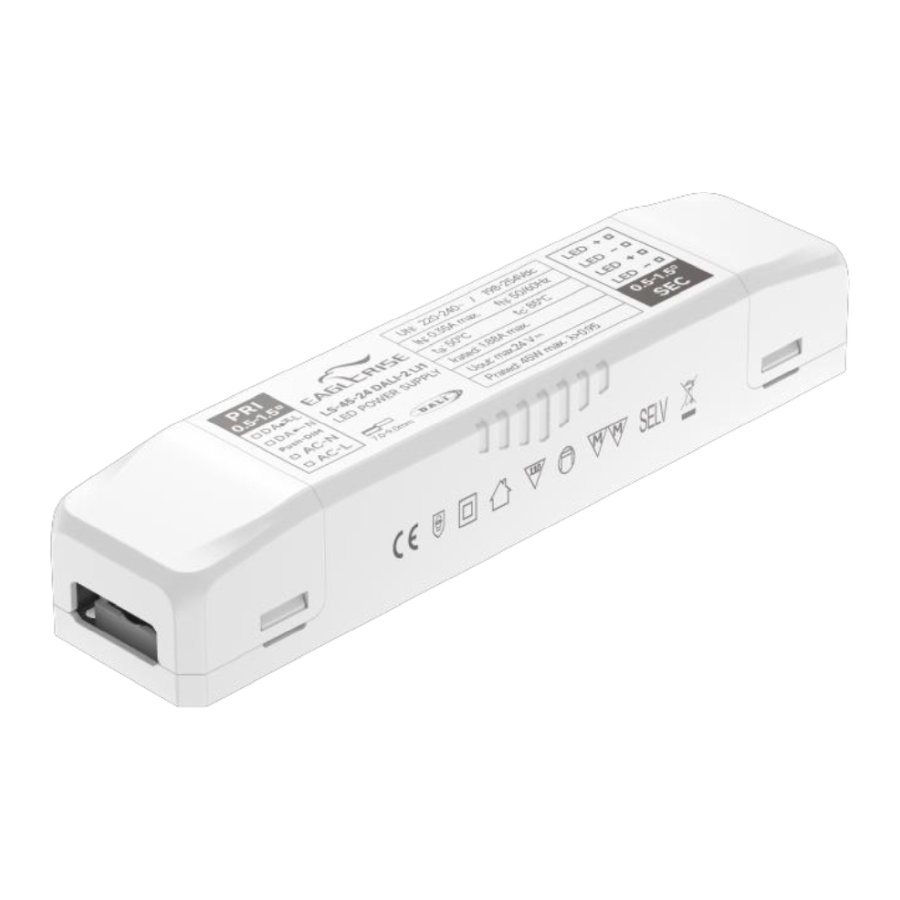

Eaglerise’s LS-45-24 DALI2 LI1 is a 45W 24V DC constant voltage DALI-2 Dimmable LED driver with a current output up to 1.9A.  It’s very small form factor allows it to be used in tight spaces for small loads, such as cabinet lights.

Features

• Constant voltage: 24V DC
• Max. output power: 45W

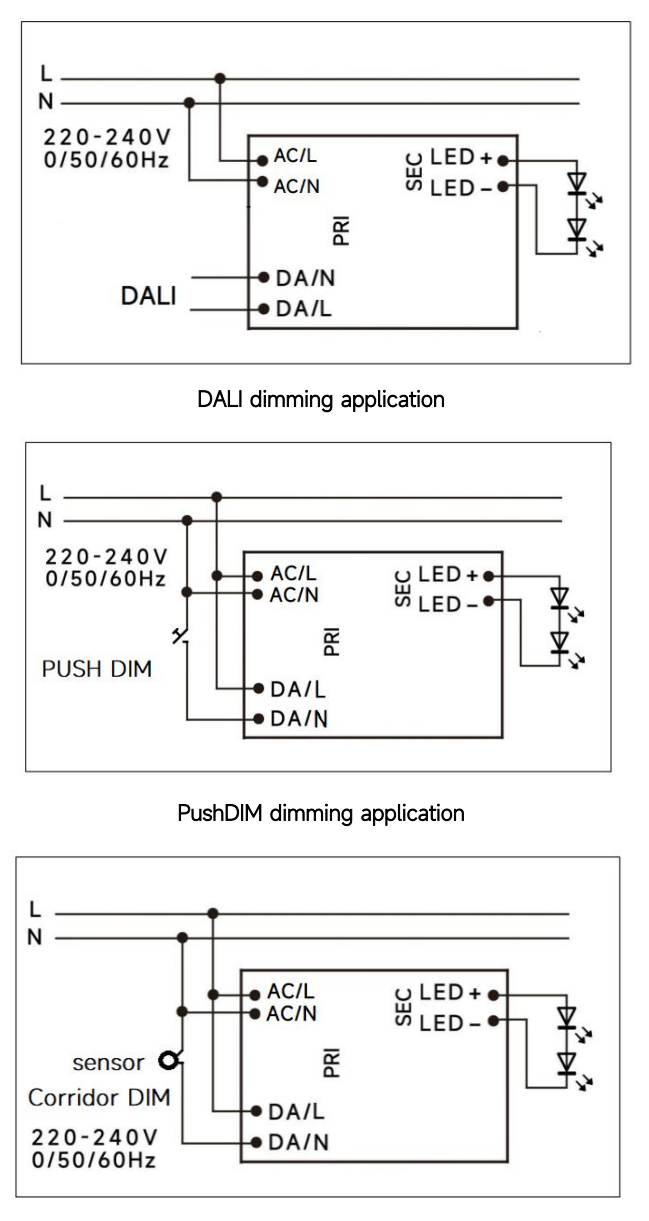

• DALI-2 dimmable
• PUSH dimmable
• Corridor function

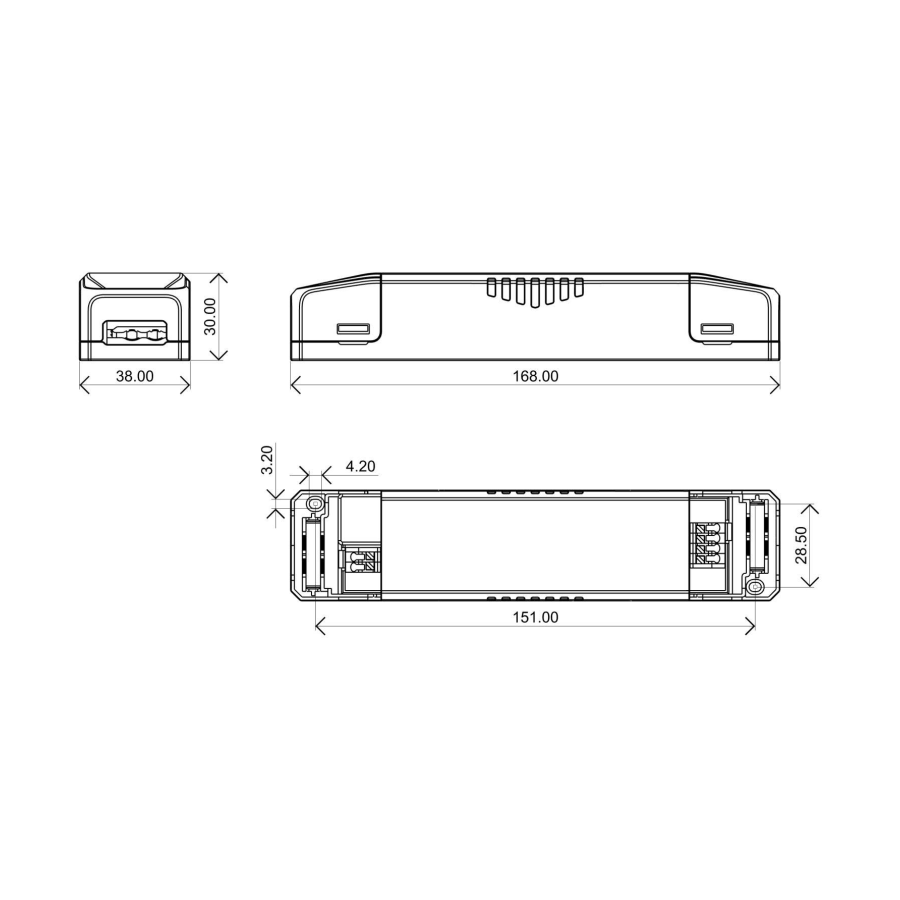

• Compact design
• Dry locations – IP20
• Nominal life-time of >50,000hr @ Tc=75℃
• 5 year warranty

Protections

• Over temperature
• Over voltage
• Overload
• Short-circuit

Mains Power Lead (not included)
