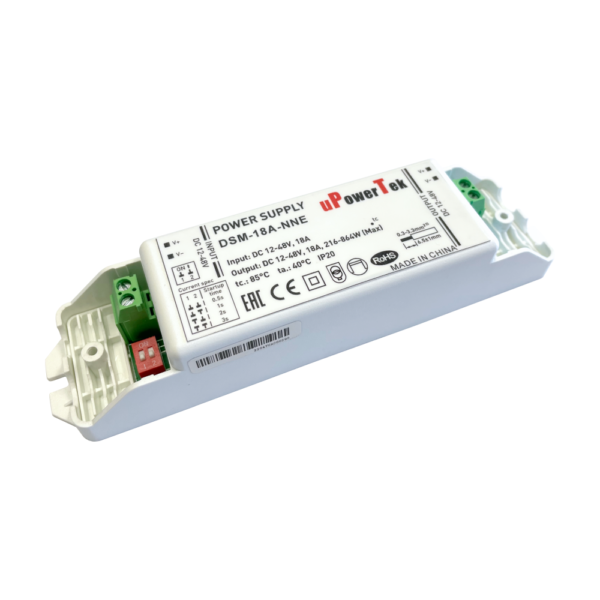

LED Strip Light Soft Starter 12-48V 18A | DSM-18A-NNE



USER SELECTABLE RAMP UP TIME



$26.95 Inc GST

Register for Reseller Pricing

1 in stock

DSM-18A-NNE
LED Driver LED Driver Accessories Miboxer Single Colour Control Skydance Unique Products
LED Driver
  • Description
  • Specifications
  • Downloads

Description

This unique yet simple device produces a visual soft start for any constant voltage LED strip light.  It is connected between the power source (LED driver) and the LED strip light.



Once power is applied, the LED strip will gradually increase from off to 100%.  The ramp up time is user selectable by onboard dip switches and can be set to either 0.5, 1, 2 or 3 seconds.



With a current rating of 18A, it is capable of operating a large amount of LED strip light.



Recommend for use only with Linear Lux’s range of constant voltage LED Drivers.



Features

  • User selectable soft start time of 0.5, 1, 2 or 3 seconds
  • Voltage: 12~48V DC
  • Current: 18A max
  • Power: 216W (12V) / 432W (24V) / 648W (36V) / 864W (48V)

Specifications

INPUT / OUTPUT
Voltage 12~48V DC
Current 18A
Power 216W (12V) / 432W (24V) / 648W (36V) / 864W (48V)
Output Frequency 1kHz min.
CONNECTIONS
Input Screw Terminals
Output Screw Terminals
PROTECTIONS
Short Circuit Recovers once fault removed
Over Temperature Turn off the output when Tc ≧ 105±10℃
Auto Recovery When Tc ≦ 70±10℃
ENVIRONMENT
Working Temperature Shutdown the output when Tc≧90±5℃; Auto recovery when Tc≦40±5℃
IP Rating IP20

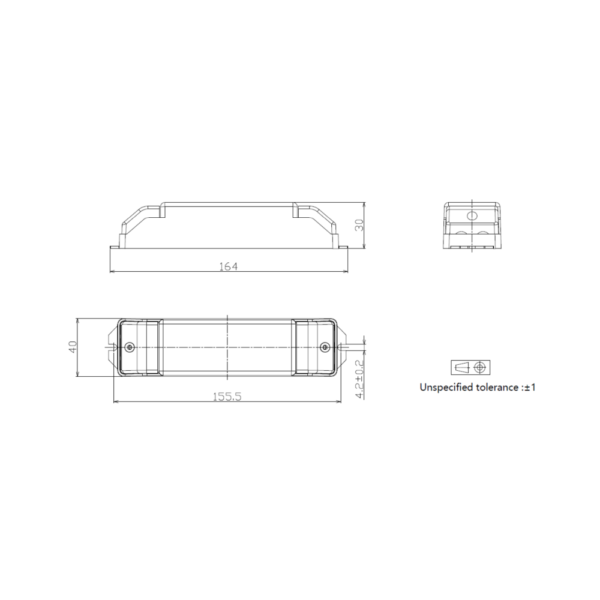

DIMENSIONS
L x W x H (24V) 164 x 40 x 30 mm
Weight 0.100 kg
OTHER
Typical Lifetime >100,000 hours @ Tc = <75°C
MTBF >990,000 hours @ Tc = < 75°C [MIL-HDBK-217F]
Warranty 5 Years
Unless specified, all tests were performed @ 25°C room temperature

Downloads

  • DSM-18A Rev A Data Sheet (283 KB)
