79 in stock (can be backordered)
This BOKE BK-HGV022-12V0 is a 22W 12V DC 1.8A constant voltage, flicker free linear LED driver.
The slimline linear design allows the HGV series to be mounted directly within LED linear light fittings. Whilst also suitable for general constant voltage LED applications.
Boke’s HGV series has been manufactured with performance and high reliability at it’s core.
BOKE BK-HGV022-12V0
We also stock a wide range of dimmable LED linear drivers, click here
OUTPUT | |
---|---|
Voltage | 12 VDC |
Current | 1.8 A |
Power | 22 W |
INPUT | |
Voltage | 200 ∼ 240 VAC / 200 ∼ 240 VDC |
Current | 0.3 A (max) @ 220 VAC [Full Load] |
Inrush Current | 25.75 A (peak) 300us duration (50 % Ipeak) |
Leakage Current | 0.7 mA (max) @ 230 VAC |
Efficiency | 87%(typical) |
Power Factor | >0.95 (refer to PF vs Load Curve) |
THD | <10% (refer to THD vs Load Curve) |
CONTROL | |
On/Off, Dimming | None |
CONNECTIONS | |
Input | Push terminals |
Output | Push terminals |
PROTECTIONS | |
Surge Protection | DM 2KV CM 2KV |
Short Circuit | Recovers once fault removed |
ENVIRONMENT | |
Working Temperature | Tc = -20 ~ +60°C |
Working Humidity | 10 ~ 90% RH |
IP Rating | IP20 |

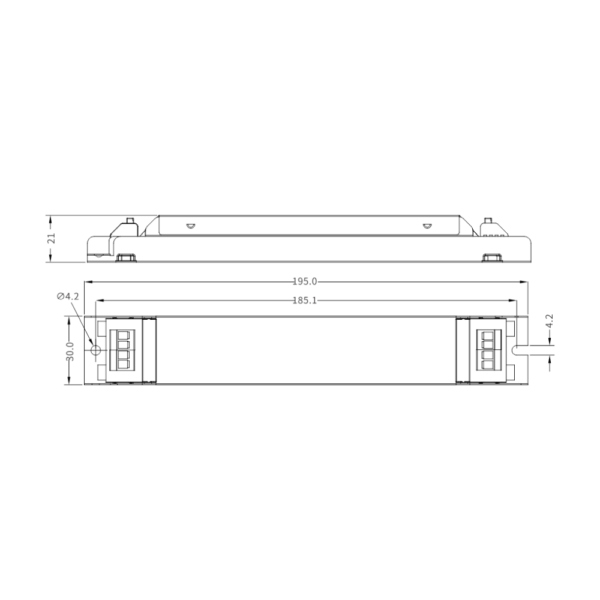

DIMENSIONS | |
L x W x H (24V) | 195 x 30 x 21 mm |
Weight | 0.130 kg |
Carton Quantity | 48 pieces Carton: 8.5kg, 380 × 250 × 180mm (OEM) |
OTHER | |
Class | |
Typical Lifetime | See data sheet |
MTBF | 500,000H, MIL-HDBK-217F (25℃) |
Warranty | 5 Years |
Approvals | RCM (Australia) |
Unless specified, all tests were performed @ 25°C room temperature |
