Slimline RF Dimmer Remote Control | R1

$40.15 Inc GST

Register for Reseller Pricing

19 in stock

LL-SD-R1
LED Controllers Single Colour Control Skydance
  • Description
  • Specifications
  • Compatible Receivers
  • Downloads

Description

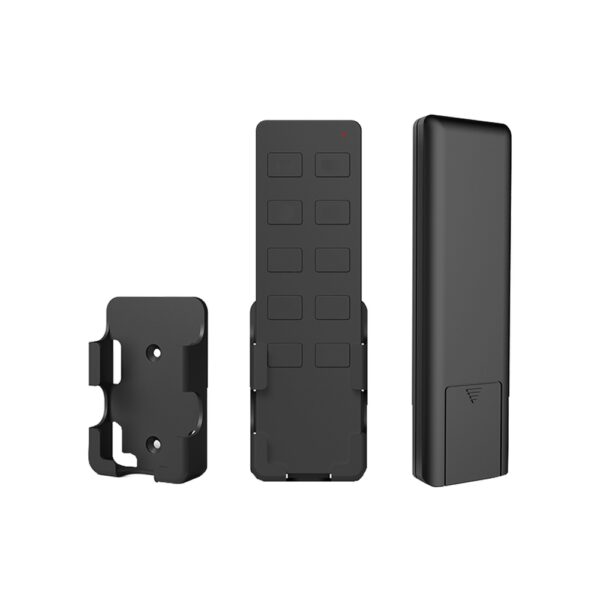

This Slimline Remote Control Dimmer with soft-touch black rubber finish offers a simple yet sleek and modern design.  The remote features 10 buttons; on/off, brightness adjustment, preset brightness settings, user set preset brightness and a nightlight brightness preset.  A small LED indicator lights up when a button is pressed and flashes when the selected function has reached its upper or lower limit.



The remote can be used with any of the Skydance single colour receiver / controllers.  Pairing is simply performed by: A short press of the match key on the receiver / controller.  Followed by an immediate press of the on/off key on the remote.  The LED indicator on the remote control will fast flash a few times, indicating the match is successful.



FEATURES:

  • 256 levels of brightness
  • Smooth dimming without flicker
  • 30m range (with auto transmission)
  • 1 remote can be paired to an infinite number of controllers/receivers
  • Up to 10 remotes can be paired to just 1 controller/receiver

FUNCTIONS:

  • 10 Buttons
  • On / Off
  • Brightness +
  • Brightness –
  • 25% Brightness Preset
  • 50% Brightness Preset
  • 75% Brightness Preset
  • 100% Brightness Preset
  • Nightlight
  • Scene 1 User Preset
  • Scene 2 User Preset

Specifications

Function Single colour dimmer
Control Buttons 10 Buttons
On / Off
Brightness +
Brightness –
25% Brightness Preset
50% Brightness Preset
75% Brightness Preset
100% Brightness Preset
Nightlight
Scene 1 User Preset
Scene 2 User Preset
Channels 1
Zones 1
Transmission Frequency RF 2.4GHz
Transmission Distance 30m
Batteries 1x CR2032
Operating Power Consumption 5mA
Standby Power Consumption 2µa
Standby Battery Lifetime 2 Years
Dimensions 135 x 40 x 11mm
IP Rating IP20
Warranty 5 Years

Compatible Receivers

Micro RF Dimmer Receiver 3A | V1-W

Mini RF Dimmer Receiver 5A | V1-M

Micro RF Dimmer Receiver 3A with Push Dim | V1-N

Single Colour Receiver / Controller 8A (RF Remote, PUSH Dimmer) | V1

Single Colour Receiver / Controller 15A (RF Remote, PUSH Dimmer) | V1-L

Single Colour Receiver / Controller 20A (RF Remote, 0/1~10V, PUSH Dimmer) | V1-T

Downloads

  • LL-SD-R1 Instruction Manual (578 KB)
