72 in stock
| Quantity | (Incl GST) |
|---|---|
| 1 - 9 | $4.13 |
| 10+ | $3.72 |

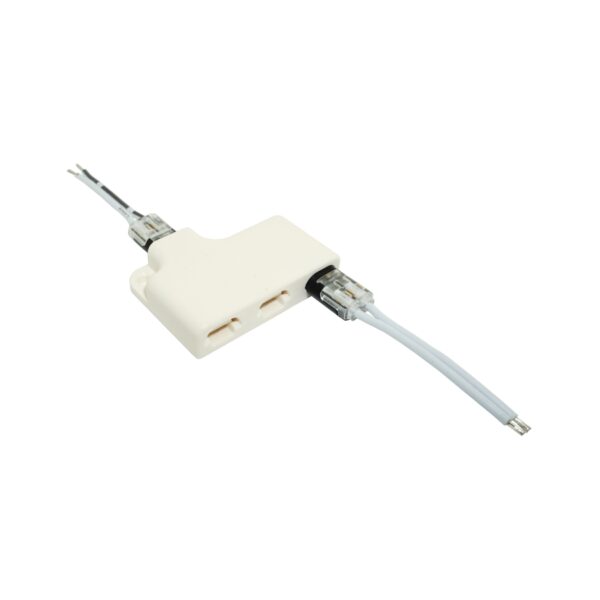

This micro power splitter is designed to be used with our Micro Power Connector, to provide one input and three outputs.
With a total current rating of 6A, this splitter can handle most low voltage DC applications.
The design of the connectors offers a tight positive fit whilst also allowing the connector to be removed and reinserted.
Ideally used for LED strip light applications.
| LL-SC-PWJ-JB3 | |
|---|---|
| Type | 3 Way Splitter |
| Inputs / Outputs | 4 |
| Voltage | <36VDC |
| Current | 6A |
| Length | 31mm |
| Width | 42.5mm |
| Height | 10.0mm |
| Mounting | 3.5mm Screw Holes |
| IP Rating | 40 |
| Flame Retardant Rating | UL94v-1 |
