LED Profile – Surface | Undershelf Neon | 2207 – 3m
Description

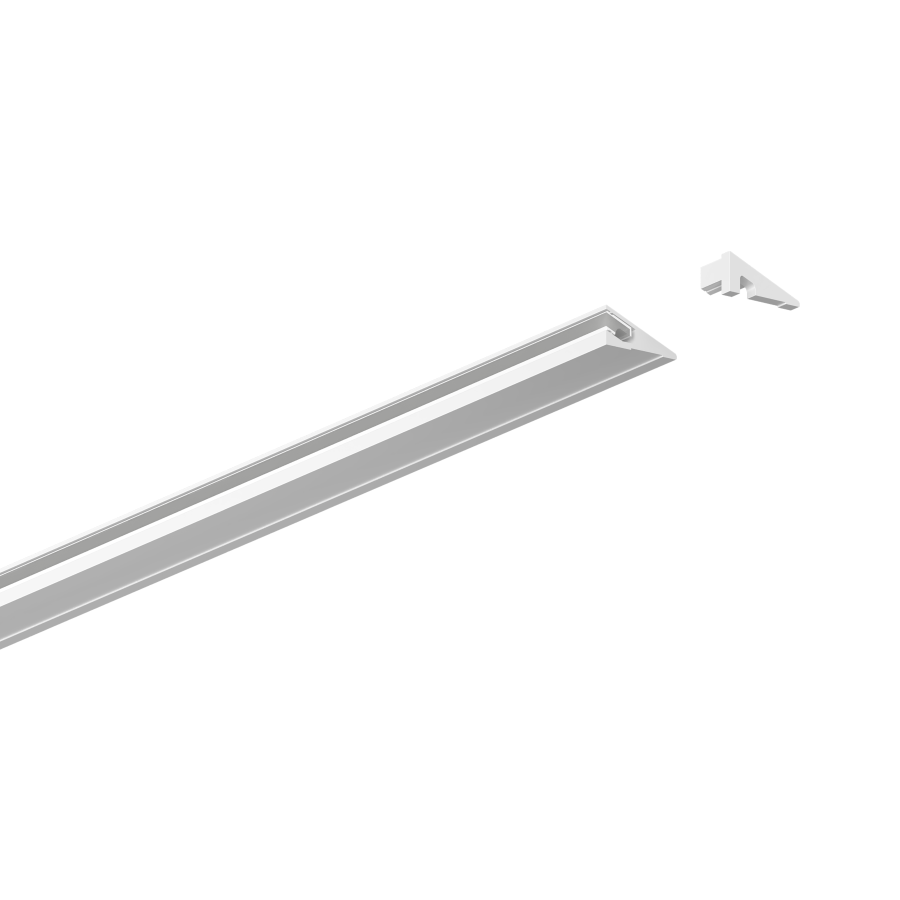

This undershelf LED aluminium profile is designed to be surface mounted, it offers a clean look to an LED strip light installation. Use with our NFG-0608.5SB neon flex.
The aluminium profile is available in anodised silver or black and painted white finish. Double sided tape is the suggested mounting method.
Whilst the profile adds to the aesthetics of the installation it also offers a number of benefits. Protection of the LEDs from dust and humidity. Acts as a heatsink, as higher power LED strip can produce damaging levels of heat. Heat can quickly shorten the lifespan of LEDs.
Our LED profiles can also be colour matched powder coated to suit your installation.
Other profiles are available to order, MOQ and lead-times may apply.
Specifications
| Type | |
|---|---|
| Mounting | Surface |
| Cover | Neon Flex (contact us) |
| Profile Colour | Oxidised Black – stocked Painted White – stocked* |
| End Cap Colour | White – stocked Black – stocked |
| Material | |
| Profile | Aluminium: 6063-T5 Anodised Thickness: 10µm |
| End Caps | Polycarbonate (fire rating: V2) UV Resistant |
| Mounting Brackets | N/A |

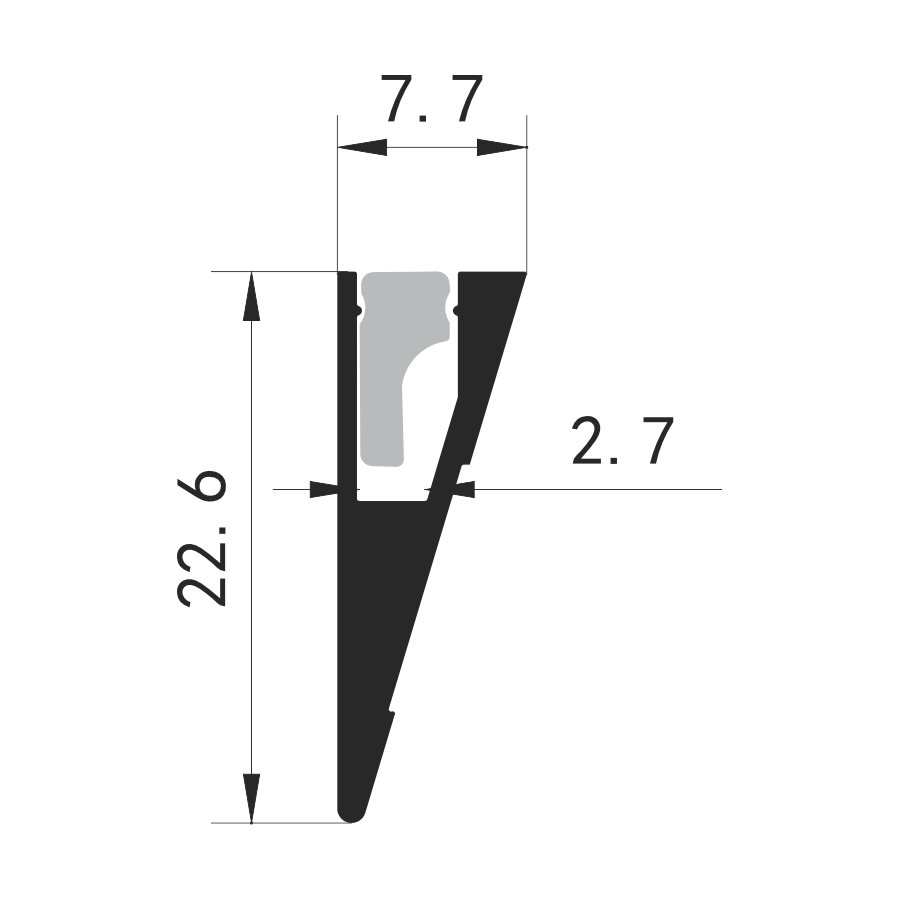

| Dimensions | |
| Width (outer) | 7.7 mm |
| Height (outer) | 22.6 mm |
| Width (inner) | 2.7 mm |
| Length | 3 m |
| Max LED tape width | N/A |
| Accessories | |
| Mounting Clips | None |
| End Caps | 3 pairs (3x with cable entry, 3x blank) |
| *MOQ / lead-time may apply | |
