LED Profile – Recessed – Ceiling Mount | Medium | 5035 – 3m
NOTE: As every installation is different, mounting springs and end caps are sold separately. Contact us to discuss your requirements.
Description

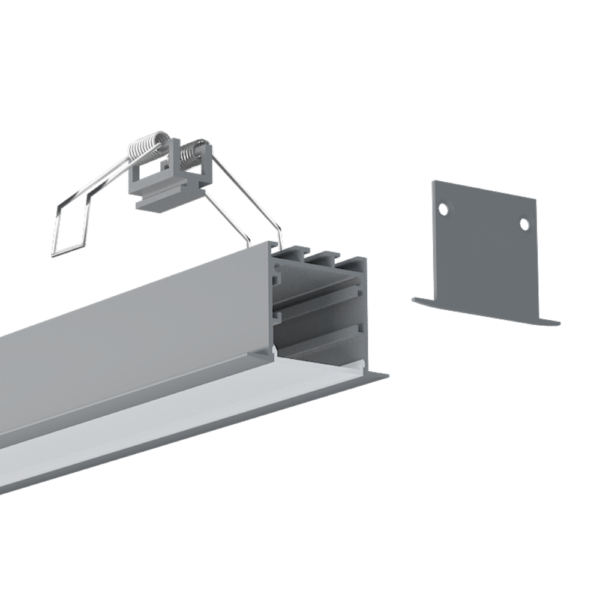

This medium size LED aluminium profile is designed to be mounted in a recess, it offers a clean look to an LED strip light installation.
The aluminium profile is anodised with a painted white finish. Mounting clips and end caps are sold separately to ensure you only buy what you need.
Whilst the profile adds to the aesthetics of the installation it also offers a number of benefits. Protection of the LEDs from dust and humidity. Acts as a heatsink, as higher power LED strip can produce damaging levels of heat. Heat can quickly shorten the lifespan of LEDs.
Our LED profiles can also be colour matched powder coated to suit your installation.
Other profiles are available to order, MOQ and lead-times may apply.
Specifications
Type | |
---|---|
Mounting | Recessed – Ceiling |
Cover | Opal (40~30% light transmission) – indent* Diffuser (80~70% light transmission) – stocked Clear (95~85% light transmission) – indent* Black |
Profile Colour | Anodised Silver – optional* Anodised Black – optional* Painted White – stocked Custom Powder Coating – optional* |
End Cap Colour | White – stocked Grey – indent* Black – indent Silver – indent* |
Material | |
Profile | Aluminium: 6063-T5 Anodised Thickness: 10µm |
Cover | Polycarbonate (fire rating: V2) UV Resistant |
End Caps | Polycarbonate (fire rating: V2) UV Resistant |
Mounting Brackets | Stainless Steel |

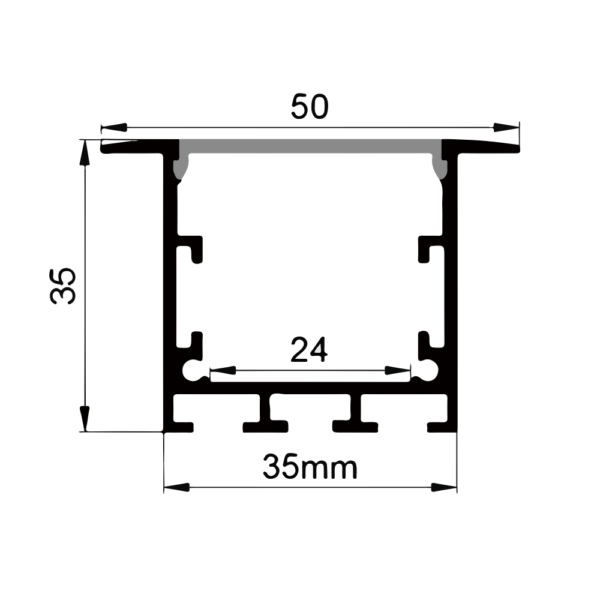

Dimensions | |
Width (outer) | 50.0 mm |
Height (outer) | 35.0 mm |
Width (inner) | 35.0 mm |
Length | 3 m |
Max LED tape width | 24.0 mm |
Accessories | |
Mounting Clips | 6 each |
End Caps | 3 pairs (3x with cable entry, 3x blank) |
*MOQ / lead-time may apply |
Downloads
- LL-PR-RE-5035 Data Sheet (1 MB)
