Flexible LED Strip Light | Zig Zag | 10W/m 72 LED/m 12V 4000ºK IP20 5M

$42.79 Inc GST
2 in stock
Description

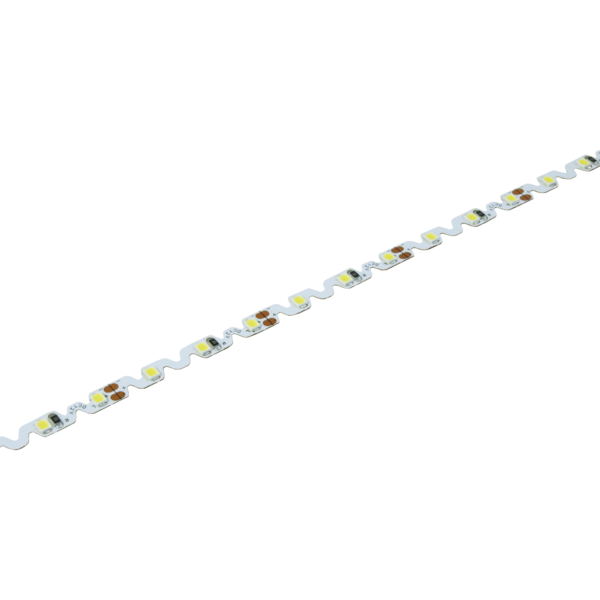

Zig Zag LED strip light is a horizontally bendable. Primarily used in the sign industry to conform to complex shapes such as illuminated letters. Due to a high LED density of 72 LEDs/m, visible dots are minimised.
CRI is >80, higher CRI up to 99 can be ordered.
The thermal efficiency of this LED strip means it does not require a heatsink allowing it to be mounted to almost any smooth hard surface.
This LED strip carries an IP rating of 20, this is an indoor / dry environment LED strip only. Please contact us if you require either IP54 or IP67.
Specifications
| Electrical Data | |
|---|---|
| Voltage | 12 VDC |
| Wattage 1m | 10W |
| Current 1m | 0.83 A |
| LED Data | |
| Package Type | 2835 |
| Chips LED | 1 |
| LEDs 1m | 72 |
| Photometric Data | |
| Colour Temperature | 4000K |
| Colour Rendering Index Ra | >80 |
| Luminous Flux 1m | 1002 |
| Luminous Efficacey | 100 |
| Beam Angle | 120° |
| Dimmable | 1 ∼ 100% (refer data sheet) |
| Construction / Protection Data | |
| Substrate | Double layer FPCB 2oz |
| Mounting | Double sided tape 3M 9080 |
| IP Rating | IP20 |
| Operating Temperature | -20 ∼ +70 C° |
| Storage Temperature | -20 ∼ +50 C° |
| Dimensions | |
| Cutting increments | 41.7mm (3 LEDs) |
| Length | 5m |
| Width | 6.0mm |
| Height | 1.2mm |
| Lifetime | |
| Working Life | 70,0000 hrs |
Downloads
- LED Tape Selection Guide (802 KB)
