Flexible LED Strip Light | Series 5 | 14.4W/m 120 LED/m 24V Yellow IP20 5M
4 in stock (can be backordered)
Description

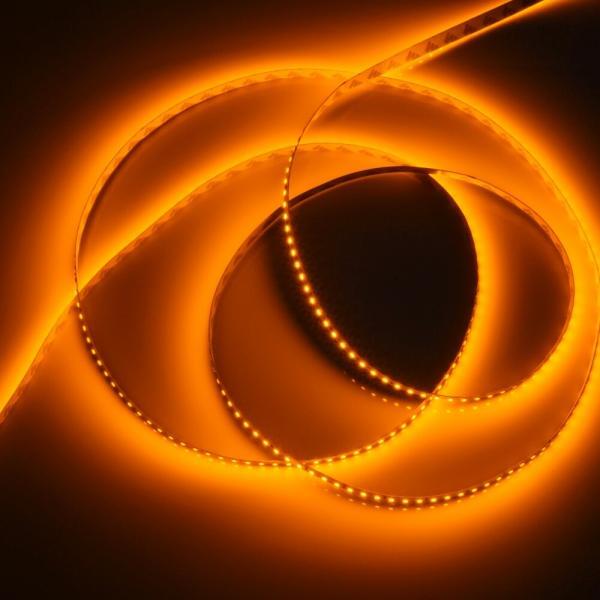

Our Series 5 | 14.4W/m flexible LED strip light uses 120/m of YELLOW 2835 LEDs. The high density of LEDs minimise the visual dottiness and ensures a vivid bright colour.
As well as Yellow, we also stock other static colours; Green, Blue, Orange, Pink, Purple and Red.
The PCB is made using 3oz copper, this reduces voltage drop, so allows for a continuous 10m length without visible loss of brightness.
The thermal efficiency of this LED strip means it does not require a heatsink allowing it to be mounted to almost any smooth hard surface.
This LED strip carries an IP rating of 20, this is an indoor / dry environment LED strip only. Please contact us if you require either IP54 or IP67.
Specifications
Electrical Data | |
---|---|
Voltage | 24 VDC |
Wattage 1m | 14.4 W |
Current 1m | 0.6 A |
LED Data | |
Package Type | 3528 |
Chips LED | 1 |
LEDs 1m | 120 |
Pitch | 8.33 mm |
Photometric Data | |
Colour Temperature | Yellow |
Colour Rendering Index Ra | N/A |
Luminous Flux 1m | |
Luminous Efficacey | |
Beam Angle | 120° |
Dimmable | 1 ∼ 100% (refer data sheet) |
Construction / Protection Data | |
Substrate | Double layer FPCB 3oz |
Mounting | Double sided tape 3M 9080 |
IP Rating | IP20 |
Operating Temperature | -20 ∼ +70 C° |
Storage Temperature | -20 ∼ +50 C° |
Dimensions | |
Cutting increments | 6 LEDs / 50mm |
Length | 5m |
Width | 10.0mm |
Height | 1.2mm |
Lifetime | |
Working Life | 70,0000 hrs |
Downloads
Contact us for data sheets
- LED Tape Selection Guide (802 KB)
