Description

This BOKE BK-PUL060A-2000AD is a user multi selectable constant current DALI-2 (DT6), PUSH, 1~10V & 10V PWM dimmable LED Driver.  The output current of 800mA, 900mA, 1000mA, 1100mA, 1150mA, 1200mA, 1250mA, 1300mA, 1400mA, 1500mA, 1600mA, 1700mA, 1800mA, 1900mA or 2000mA is set by changing a combination of DIP switches.

It is typically used to operate constant current LED lights such as downlights and panel lights found in office or commercial installations.

HPC patented technology ensures all lights with this BOKE driver will be at the same brightness at any dimming level.

Screw-free, pressing type strain relief supports thicker cables allowing simple and quick installation.  This driver is a Class II design, meaning it can be mounted both internally and externally of the light fitting.

Boke’s PUL series has been manufactured with performance and high reliability at it’s core.

BOKE BK-PUL060A-2000AD

Features

• User selectable output currents:
  • Current: 800mA, Voltage: 3~42V, Max. power: 33.6W
  • Current: 900mA, Voltage: 3~42V, Max. power: 37.8W
  • Current: 1000mA, Voltage: 3~42V, Max. power: 42.0W
  • Current: 1100mA, Voltage: 3~42V, Max. power: 46.2W
  • Current: 1150mA, Voltage: 3~42V, Max. power: 48.3W
  • Current: 1200mA, Voltage: 3~42V, Max. power: 50.4W
  • Current: 1250mA, Voltage: 3~42V, Max. power: 52.5W
  • Current: 1300mA, Voltage: 3~42V, Max. power: 54.6W
  • Current: 1400mA, Voltage: 3~42V, Max. power: 58.8W
  • Current: 1500mA, Voltage: 3~40V, Max. power: 60.0W
  • Current: 1600mA, Voltage: 3~38V, Max. power: 60.8W
  • Current: 1700mA, Voltage: 3~36V, Max. power: 61.2W
  • Current: 1800mA, Voltage: 3~34V, Max. power: 61.2W
  • Current: 1900mA, Voltage: 3~32V, Max. power: 60.8W
  • Current: 2000mA, Voltage: 3~30V, Max. power: 60.0W*
• DALI-2 (DT 6)+ PUSH +  1~10V + 10V PWM dimmable
• Flicker-free, 1~100% soft dimming (1% current accuracy)
• High PF, high efficiency, low THD

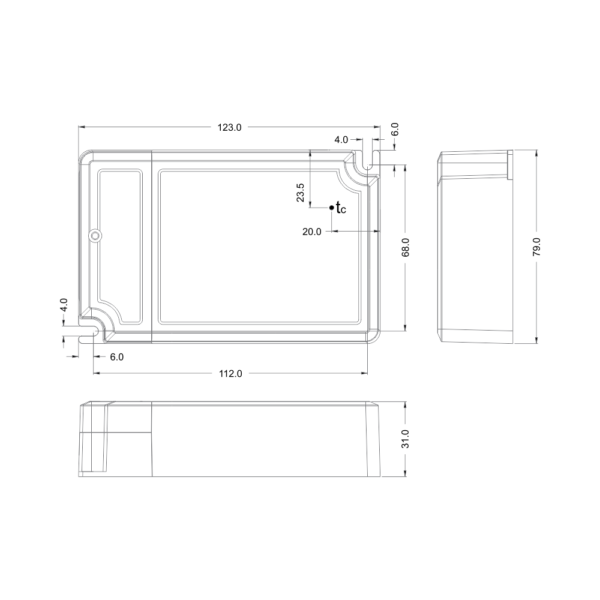

• Compact design (103x68x30mm)
• Short circuit & no-load protection
• 5 year warranty

*default factory set current
