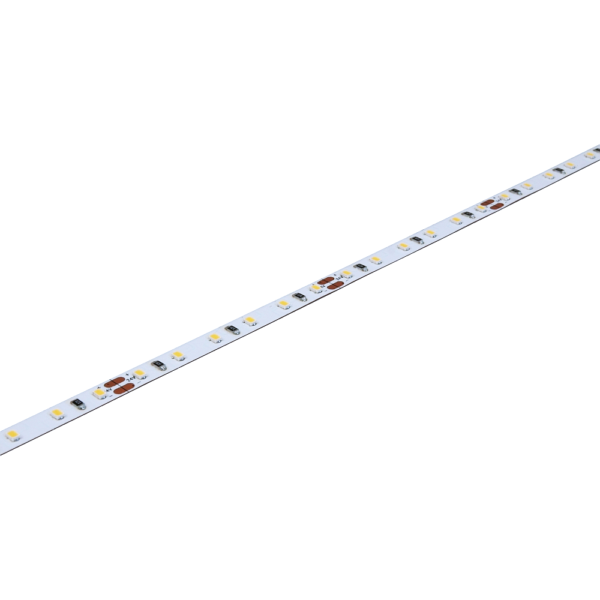

Our Series 4 | 14.4W narrow flexible LED strip light is only 5mm wide and is suited to applications where a very narrow extrusion is used. This strip light produces a medium to high level of light, which makes it suitable for most applications. The thermal efficiency of this LED strip means it does not require a heatsink allowing it to be mounted to almost any smooth hard surface.
This LED strip carries an IP rating of 20, this is an indoor / dry environment LED strip only.
The CRI of the series is >90. We can offer LED strip with a CRI of up to 99.
Colour Consistency: One Bin
Colour consistency is one of the main factors for choosing a high quality LED strip. We can ensure colour consistency by selecting the same BIN per CCT.
Very few other suppliers will tell you which BIN of LEDs your strip has come from, this is important if you need to add to an existing installation. We will also keep a record of the CCT and BIN for all of your orders. The CCT and BIN is also printed on the outer packaging of each LED strip.
See here for the current BIN of each CCT.
|Wattage 1m||14.4 W|
|Current 1m||0.6 A|
|Colour Rendering Index Ra||>90 (99 avail.)|
|Luminous Flux 1m||1,260 lm|
|Luminous Efficacey||87.5 lm/W|
|Dimmable||1 ∼ 100% (refer data sheet)|
|Construction / Protection Data|
|Substrate||Double layer FPCB|
|Mounting||Double sided tape 3M 9080|
|Operating Temperature||-20 ∼ +70 C°|
|Storage Temperature||-20 ∼ +50 C°|
|Cutting increments||6 LEDs / 50mm|
|Working Life||70,0000 hrs|
