Name: 2 Way Lever Splicing Connector | Wago 221-412
Brand: Wago
SKU: LL-ACC-CON-221412
Availability: InStock

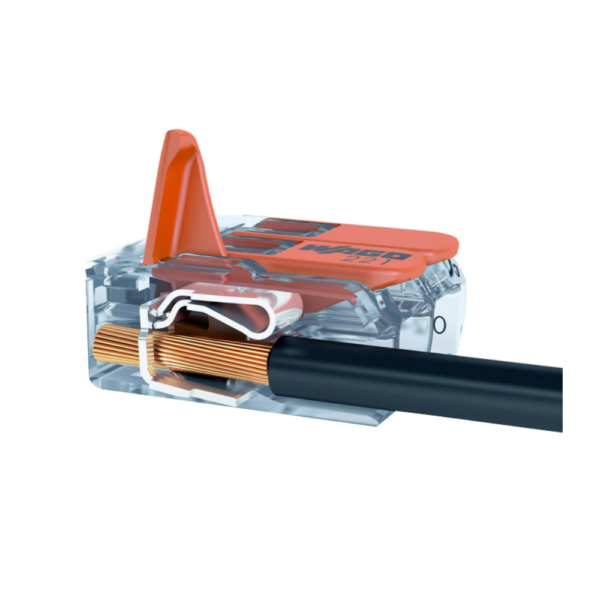

2 Way Lever Splicing Connector | Wago 221-412

Brand:

$0.98 Inc GST

186 in stock (can be backordered)

Quantity	Price (Excl GST)
1 - 9	$0.98
10+	$0.81

SKU: LL-ACC-CON-221412 Category:

Description

Easily connect 2 wires in one connector for either a permanent or temporary installation.

Simple to use: pull the lever up, insert a conductor and push the lever back down
Easily terminate conductors from 0.14mm to 4mm²
Connect solid, stranded and fine-stranded conductors
Allow simple connecting of dissimilar cable sizes

Electrical data
Ratings per EN 60664
Nominal voltage	450 V
Rated surge voltage	4 kV
Rated current	32 A

Ratings per UL 486C
Rated voltage	600 V
Rated current	20 A

Connection data
Actuation type	Lever
Connectable conductor materials	Copper
Nominal cross-section	4 mm²
Solid conductor	0.2 ~ 4 mm² 24 ~12 AWG
Stranded conductor	0.2 … 4 mm² / 24 … 12 AWG
Fine-stranded conductor	0.14 ~ 4 mm² 24 ~ 12 AWG
Strip length	11 mm
Total number of connection points	2
Total number of potentials	1
