Flexible LED Strip Light | RGB COB | 15W/m 840 LED/m 24V IP20 5M
13 in stock
Description

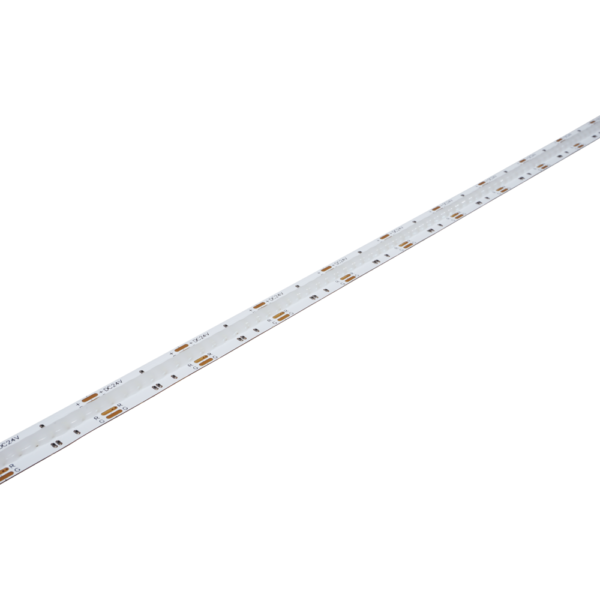

Our RGB COB LED strip light uses 840x RGB chips per metre. The use of COB technology means the visible dots are almost eliminated. This gives the added advantage of not requiring a profile and lens to diffuse the unsightly dots.
COB flexible strip light offers a seamless visual linear light, eliminating any visual dots often found with traditional strip light. Ideal for installations where the LED strip will not be mounted within profile but seen.
This PCB is made using 3oz copper, this reduces voltage drop, so allows for a continuous 10m length without visible loss of brightness.
This LED strip carries an IP rating of 20, this is an indoor / dry environment LED strip only. Please contact us if you require this strip light with an IP67 protection rating.
Specifications
Electrical Data | |
---|---|
Voltage | 24 VDC |
Wattage 1m | 15 W |
Current 1m | 0.63 A |
LED Data | |
Package Type | COB |
Chips LED | N/A |
Chips 1m | 840 |
Photometric Data | |
Colour Temperature | RGB (Red, Green, Blue) |
Colour Rendering Index Ra | N/A |
Luminous Flux 1m | N/A |
Luminous Efficacey | N/A |
Beam Angle | 120° |
Dimmable | 1 ∼ 100% (refer data sheet) |
Construction / Protection Data | |
Substrate | Double layer FPCB 3oz |
Mounting | Double sided tape 3M 9080 |
IP Rating | IP20 |
Operating Temperature | -20 ∼ +70 C° |
Storage Temperature | -20 ∼ +50 C° |
Dimensions | |
Cutting increments | 25.0mm |
Length | 5m |
Width | 10.0mm |
Height | 5.0mm |
Lifetime | |
Working Life | 70,0000 hrs |
Downloads
-
- LED Tape Selection Guide (802 KB)
