Description

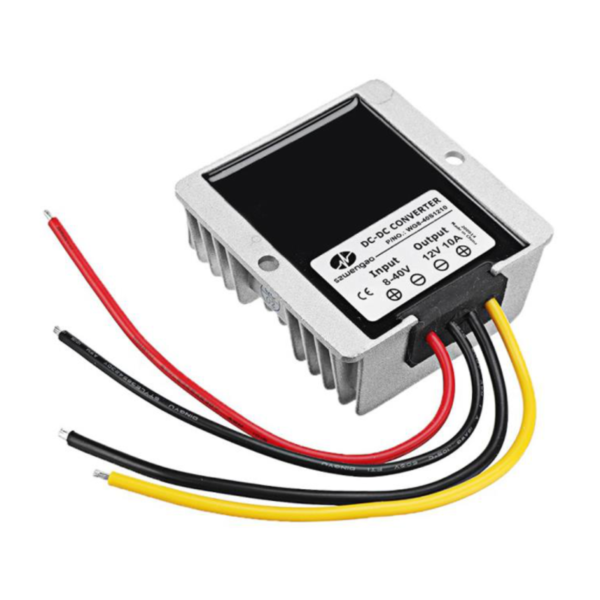

This WG8-40S1210 is a non isolated DC-DC buck boost converter that uses synchronous rectification technology, and features high efficiency and power density. Ideally used in the automotive and marine industry to convert a variable supply voltage of 8~40 VDC with a regulated 12 VDC output up to 10A (120W). With a environmental protection rating of IP68 and small case size this DC-DC converter can be mounted virtually anywhere.

• High efficiency: 90.8 % 12Vin, 25°C
• Input transient absorption protection
• Wide operating ambient temperature: -40 ~ +50°C
• Short circuit, over load, low voltage protections
• Conduction, convection and radiation cooling (no fan)
• Waterproof IP68 protection
• Dimensions: 74 x 74 x 32mm
• 2 Year warranty
