126 in stock

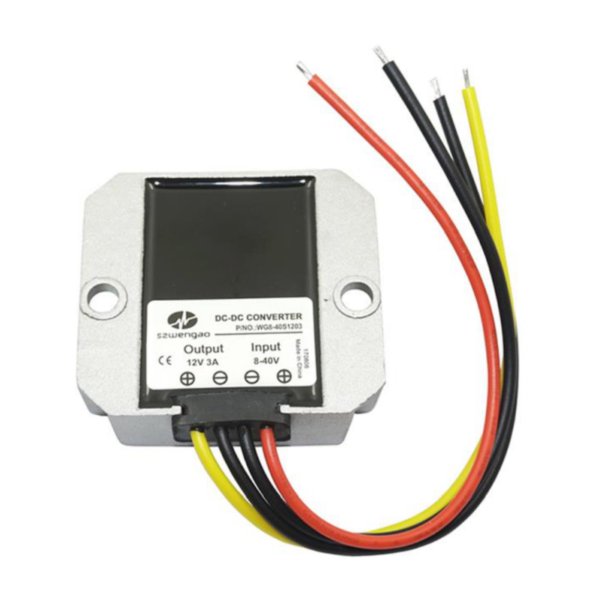

This WG8-40S1203 is a non isolated DC-DC buck boost converter that uses synchronous rectification technology, and features high efficiency and power density. Ideally used in the automotive and marine industry to convert a variable supply voltage of 8~40 VDC with a regulated 12 VDC output up to 3A (36W). With a environmental protection rating of IP68 and small case size this DC-DC converter can be mounted virtually anywhere.
INPUT | |
---|---|
Voltage | 8 ∼ 40 VDC |
Current | 5.7 A (max) |
No Load Current | 51 mA |
OUTPUT | |
Voltage | 12 VDC ±1% |
Current | 3 A |
CONNECTIONS | |
Input | Insulated wire (18 AWG) |
Output | Insulated wire (18 AWG) |
PROTECTIONS | |
Undervoltage | <8 V (auto recovery) |
Input Current | 20 A (fused) |
Output Current | 6 A |
Short Circuit Protection | <4 hours (auto recovery) |
ENVIRONMENT | |
Working Temperature | Tc = -40 ~ +80°C |
Working Humidity | 5 ~ 95% RH |
IP Rating | IP68 |
DIMENSIONS | |
L x W x H | 64 x 57 x 22 mm |
Weight | 120 g |
OTHER | |
MTBF | ≥200,000H (25℃) |
Warranty | 2 Years |
Unless specified, all tests were performed @ 25°C room temperature |
