480W 24V DC 20A LED Driver | uPowerTek BLD-480-V024-NNS
100 in stock
|Quantity||Price (Excl GST), Models can be mixed for quantity pricing. Contact us for mixed quantity pricing.|
|1 - 4||$219.00|
|5 - 9||$204.80|
|10 - 19||$191.70|
uPowerTek’s BLD-480-V024-NNS is a 480W 24V DC constant voltage LED driver with a current output up to 20A. With class leading features, this driver is the ultimate choice when it comes to operating LED strip Light or other constant voltage LED lighting.
uPowerTek’s BLD series LED drivers offer some of the most advanced features available on the market. These include; industry leading 8 year warranty, 100,000hr lifetime, 10kV surge protection, ultra compact design, high operating temperature and IP67 environmental rating.
Designed as an enclosed, fanless LED driver it is suits both indoor and outdoor (wet) environments, with a protection rating of IP67. Despite the omission of a cooling fan the driver can operate at full output up to a case temperature of 75°C.
The compact design allows for installation where space is a premium or the driver is to be hidden in places such as ceiling coffers.
Dimmable models are available in 0∼10V, DALI, PUSH or DMX, all dimmable models feature PWM output.
Why is PWM output important? PWM dimming does not require load matching, this means you will always have consistent, full range dimming regardless of driver capacity and/or load. It also allows for identical dimming levels using different size drivers operated by the same dimmer. Meaning, you can have a 150W driver operating a 90W load and a 100W driver operating a 90W load, with both LED luminaries dimming at the same rate. Offering 0-100% dimming and no flicker.
All uPowerTek BLD series LED drivers are fitted with Australian mains plug and are RCM approved.
uPowerTek BLD-480-V024-NNS 480W 24V LED Driver
- Constant voltage: 24V DC
- Max. output power: 480W
- High efficiency
- Wide input voltage range
- 10kV surge protection
- Compact design
- Dry, damp and wet locations – IP67
- Nominal life-time of 100,000hr @ Tc=75℃
- 8 year warranty @ Tc=75℃
- Over temperature
Suitable replacement for Mean Well HLG-480H-24, Osram & Tridonic LED drivers based on performance, quality and price.
The BLD & TLD CV series are available in the following sizes:
50W 60W 75W 100W 120W 150W 200W 240W 320W 400W 480W 600W 800W
Linear Lux is the Australian uPowerTek Distributor
Who is uPowerTek?
We encourage you to compare uPowerTek’s BLD / TLD series against any other LED driver for both performance and price.
|Model Number||Input Voltage Range||Output Power||Output Voltage||Output Current||Dimming Method||12V Aux||Dim-Off Power|
|BLD-480-V024-NNS||90~305 VAC||480 W||24 V||20.0 A||None||No||–|
|BLD-480-V024-DNS||90~305 VAC||480 W||24 V||20.0 A||0~10V||No||<1.5 W|
|BLD-480-V024-ENS||90∼305 VAC||480 W||24 V||20.0 A||0~10V||Yes||<0.5 W|
|BLD-480-V024-ANS||90∼305 VAC||480 W||24 V||20.0 A||DALI||No||<1.5 W|
|BLD-480-V024-MRS||90∼305 VAC||480 W||24 V||20.0 A||DMX||No||<1.5 W|
|Voltage||90 ∼ 305 VAC / 127 ∼ 420 VDC (380 VAC < 2hrs)|
|Current||2.7 A (max) @ 220 VAC [Full Load] |
4.5 A (max) @ 120 VAC [Full Load]
|Inrush Current||65 A (peak) 1.2ms, <0.25A2s @ 230 VAC [Cold start] |
70 A (peak) 1.3ms, <0.50A2s @ 277 VAC [Cold start]
|Leakage Current||0.75 mA (max) @ 220 VAC 50Hz [IEC61347-1]|
|Power Factor||>0.9 @ 60~100% Load (refer to PF vs Load Curve)|
|THD||<15% @ 60~100% Load (refer to THD vs Load Curve)|
|Dim to Off: <1.5W|
|Dim to Off: <1.5W|
|Dim to Off: <1.5W|
|Input||Flex and Plug|
|Output||1x Twin Double Insulated Cable 300mm|
|Surge Protection||Line to line 6kV, line to ground 10kV, IEC 61000-4-5|
|Short Circuit||Recovers once fault removed|
|Over Temperature||Turn off the output when Tc ≧ 105±10℃ |
Auto Recovery When Tc ≦ 70±10℃
|Working Temperature||Tc = -40 ~ +85°C|
|Working Humidity||5 ~ 100% RH|

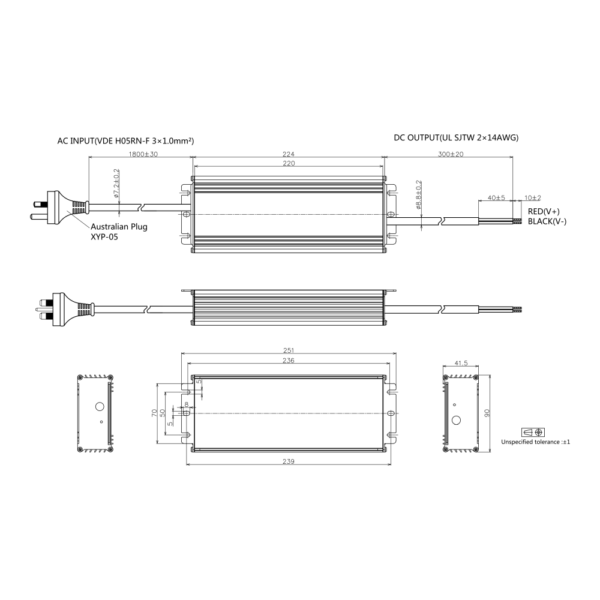

|L x W x H||224 x 90 x 41.5 mm [Body] |
251 x 90 x 41.5 mm [Overall]
|Weight||1.60 kg (without Aus mains lead)|
|Typical Lifetime||>100,000 hours @ Tc = <75°C (refer to Life vs Tc Curve)|
|MTBF||>280,000 hours @ Tc = < 75°C [MIL-HDBK-217F]|
|Unless specified, all tests were performed @ 25C room temperature|
- BLD-480-V Rev C Data Sheet (768 KB)
