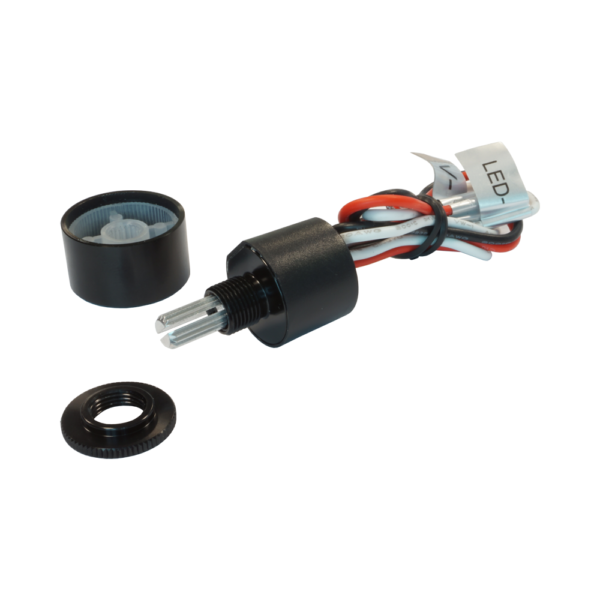

  • Tiny Dimmer Unassembled
  • Tiny Dimmer Function

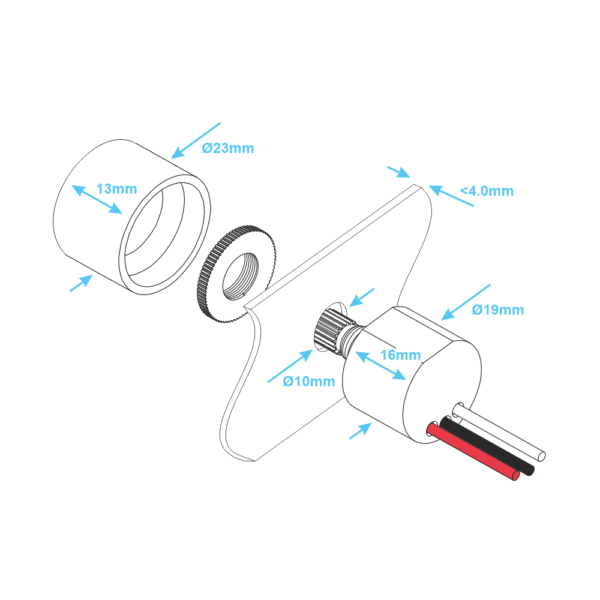

  • Tiny Dimmer Dimensions

Tiny Dimmer – Single Colour – Waterproof

$35.00 Excl GST

Register for Reseller Pricing

329 in stock

TD100B/23
LED Controllers New Products Rotary Dimmers
  • Description
  • Specifications
  • Wiring Instructions
  • Reviews (0)

Description

This tiny Dimmer, designed and manufactured by Linear Lux, is a unique and high performance dimmer for low voltage LED lights.

With such a small body and waterproof design it is ideally suited for marine, caravan & RV installations.  It’s quality design and feel also make it a sleek and simple option for residential and commercial installations.



FEATURES

  • Tiny size:- ∅19mm body diameter, 16mm body height
  • IP65 protection allows installation in both indoor and outdoor environments
  • Supplied with a 23mm brushed anodised black aluminium knob
  • Load
    • 4A @ 12VDC (48W)
    • 4A @ 24VDC (96W)
    • load capacity can be increased by using the following amplifiers 8A, 15A or 30A
  • PWM output ensures flicker free performance



OPERATION

  • Push knob to turn on/off
  • Rotate knob to adjust brightness 5-100%

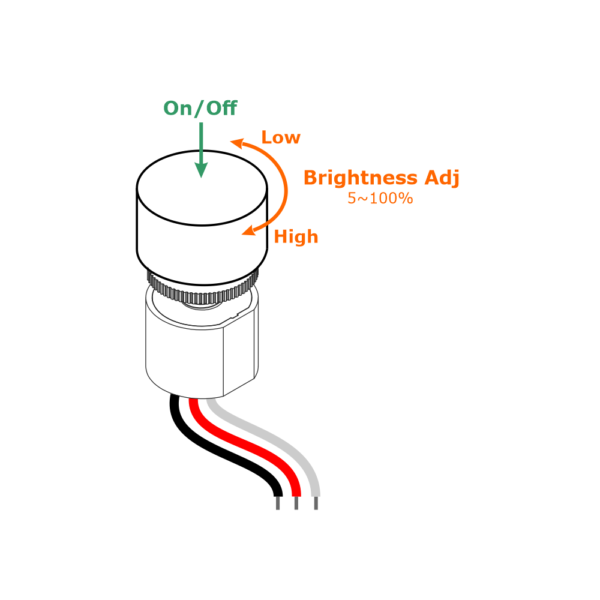

Tiny Dimmer Function

MOUNTING INSTRUCTIONS

  1. Pull the pressure-fitted knob off the shaft
  2. Loosen the washer/nut
  3. Drill a 10mm hole in panel
  4. Reattach washer/nut and knob











Specifications

Function Single Colour Dimmer
Control Rotary Knob
Voltage Rating 12~24VDC
Current Rating 4A @ 12VDC (48W)
4A @ 24VDC (96W)
Dimming Range 5~100%
Modulation Method PWM
Wiring 300mm insulated cables
Construction Anodised Aluminium thread and top cap
Plastic housing
Knob ∅23 x 13mm
Brushed Anodised Black Aluminium
Operating Temperature -10 ~ +50C
Environmental Rating IP65 (Splash proof)
Panel Hole Size
Panel Thickness
10mm
4.0mm

Wiring Instructions

STANDALONE WIRING DIAGRAM



AMPLIFIER WIRING DIAGRAM
