Description

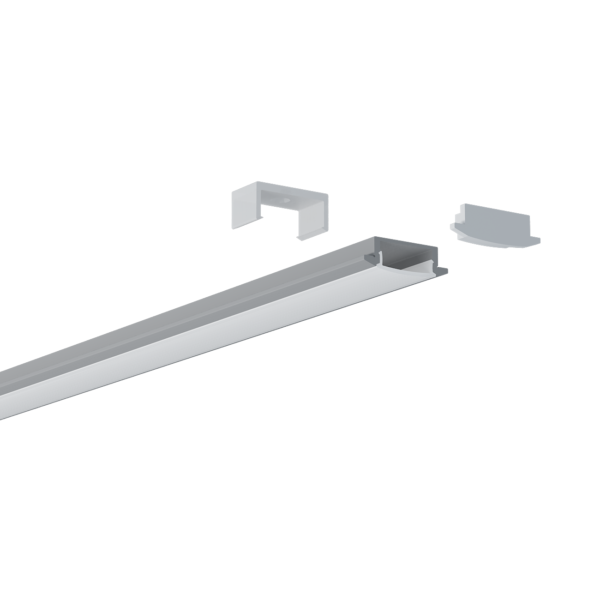

This large / shallow size LED aluminium profile is designed to be surface mounted, it offers a clean look to an LED strip light installation.
The aluminium profile is anodised with a matte silver finish. Each 3m length is supplied with a lens, 3x pairs of end caps and 6x mounting clips.
Whilst the profile adds to the aesthetics of the installation it also offers a number of benefits. Protection of the LEDs from dust and humidity. Acts as a heatsink, as higher power LED strip can produce damaging levels of heat. Heat can quickly shorten the lifespan of LEDs.
Our LED profiles can also be colour matched powder coated to suit your installation.
Other profiles are available to order, MOQ and lead-times may apply.
Specifications
| Type | |
|---|---|
| Mounting | Recessed |
| Cover | Opal (40~30% light transmission) – stocked Diffuser (80~70% light transmission) – optional* Clear (95~85% light transmission) – optional* |
| Profile Colour | Oxidised Silver – stocked Custom Powder Coating – optional* |
| End Cap Colour | White – stocked Grey – optional* Black – optional* Silver – optional* |
| Material | |
| Profile | Aluminium: 6063-T5 Anodised Thickness: 10µm |
| Cover | Polycarbonate (fire rating: V2) UV Resistant |
| End Caps | Polycarbonate (fire rating: V2) UV Resistant |
| Mounting Brackets | Stainless Steel |

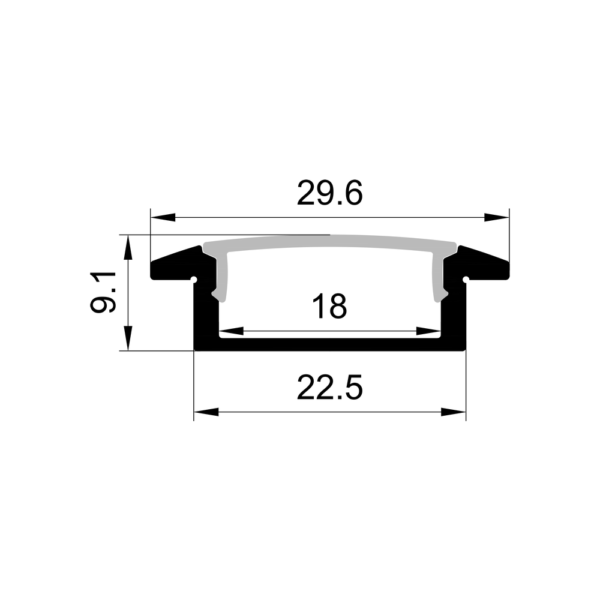

| Dimensions | |
| Width (outer) | 29.6 mm |
| Height (outer) | 9.1 mm |
| Width (inner) | 18.0 mm |
| Length | 3 m |
| Max LED tape width | 18.0 mm |
| Accessories | |
| Mounting Clips | 6 each |
| End Caps | 3 pairs (3x with cable entry, 3x blank) |
| *MOQ / lead-time may apply | |
