Flexible LED Strip Light | Series 5 | 14.4W/m 120 LED/m 24V Purple IP20 5M


$117.59 Inc GST
1 in stock
 LL28-120-24-PUR-IP20-5M-3OZ
Description

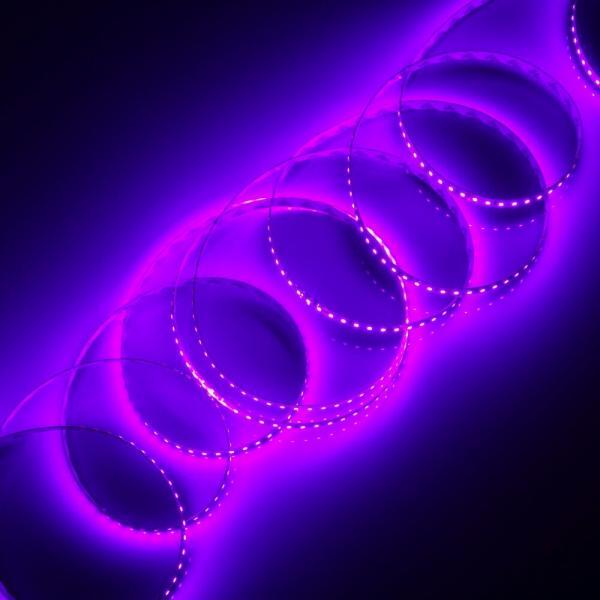

Our Series 5 | 14.4W/m flexible LED strip light uses 120/m of PURPLE 2835 LEDs. The high density of LEDs minimise the visual dottiness and ensures a vivid bright colour.
As well as Purple, we also stock other static colours; Green, Blue, Yellow, Pink, Orange and Red.
The PCB is made using 3oz copper, this reduces voltage drop, so allows for a continuous 10m length without visible loss of brightness.
The thermal efficiency of this LED strip means it does not require a heatsink allowing it to be mounted to almost any smooth hard surface.
This LED strip carries an IP rating of 20, this is an indoor / dry environment LED strip only. Please contact us if you require either IP54 or IP67.
Specifications
| Electrical Data | |
|---|---|
| Voltage | 24 VDC |
| Wattage 1m | 14.4 W |
| Current 1m | 0.6 A |
| LED Data | |
| Package Type | 3528 |
| Chips LED | 1 |
| LEDs 1m | 120 |
| Pitch | 8.33 mm |
| Photometric Data | |
| Colour Temperature | Purple |
| Colour Rendering Index Ra | N/A |
| Luminous Flux 1m | |
| Luminous Efficacey | |
| Beam Angle | 120° |
| Dimmable | 1 ∼ 100% (refer data sheet) |
| Construction / Protection Data | |
| Substrate | Double layer FPCB 3oz |
| Mounting | Double sided tape 3M 9080 |
| IP Rating | IP20 |
| Operating Temperature | -20 ∼ +70 C° |
| Storage Temperature | -20 ∼ +50 C° |
| Dimensions | |
| Cutting increments | 6 LEDs / 50mm |
| Length | 5m |
| Width | 10.0mm |
| Height | 1.2mm |
| Lifetime | |
| Working Life | 70,0000 hrs |
Downloads
Contact us for data sheets
- LED Tape Selection Guide (802 KB)
