Description

This BOKE BK-DAL050-1300Ad is a user multi selectable constant current DALI-2 (DT6) + PUSH dimmable linear LED Driver.  The output current of 550mA, 600mA, 650mA, 700mA, 750mA, 800mA, 850mA, 900mA, 950mA, 1000mA, 1050mA, 1100mA, 1150mA, 1200mA, 1250mA or 1300mA is set by changing a combination of DIP switches.

HPC patented technology ensures all lights with this BOKE driver will be at the same brightness at any dimming level.

The ultra slimline linear design allows the DAL series to be mounted directly within LED linear light fittings. Whilst also suitable for general constant voltage LED applications.

This driver is a Class II design, meaning it can be mounted both internally; and externally of the light fitting with the use of optional end cover plates.

Boke’s DAL series has been manufactured with performance and high reliability at it’s core.

BOKE BK-DAL050-1300Ad

Features

• User selectable output currents:
  • Current: 550mA, Voltage: 6~42V, Max. power: 23.1W
  • Current: 600mA, Voltage: 6~42V, Max. power: 25.2W
  • Current: 650mA, Voltage: 6~42V, Max. power: 27.3W
  • Current: 700mA, Voltage: 6~42V, Max. power: 29.4W
  • Current: 750mA, Voltage: 6~42V, Max. power: 31.5W
  • Current: 800mA, Voltage: 6~42V, Max. power: 33.6W
  • Current: 850mA, Voltage: 6~42V, Max. power: 35.7W
  • Current: 900mA, Voltage: 6~42V, Max. power: 37.8W
  • Current: 950mA, Voltage: 6~42V, Max. power: 39.9W
  • Current: 1000mA, Voltage: 6~42V, Max. power: 42.0W
  • Current: 1050mA, Voltage: 6~42V, Max. power: 44.1W
  • Current: 1100mA, Voltage: 6~42V, Max. power: 46.2W
  • Current: 1150mA, Voltage: 6~42V, Max. power: 48.3W
  • Current: 1200mA, Voltage: 6~42V, Max. power: 50.4W
  • Current: 1250mA, Voltage: 6~40V, Max. power: 50.0W
  • Current: 1300mA, Voltage: 6~38V, Max. power: 59.4W*
• DALI (DT6) + PUSH dimmable
• Flicker-free, 1~100% soft dimming (1% current accuracy)
• High PF, high efficiency, low THD

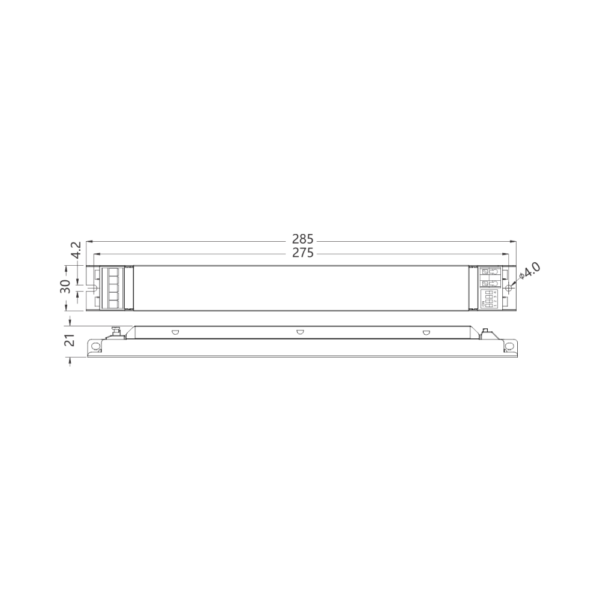

• Compact linear design (285x30x21mm)
• Short circuit & no-load protection
• 5 year warranty

*default factory set current
