550~1000mA <40W Constant Current DALI Dimmable Linear LED Driver | BOKE BK-BHL040-1000AD
16 in stock (can be backordered)
Description
This BOKE BK-BHL040-1000AD is a user multi selectable constant current DALI (DT6) dimmable linear LED Driver. The output current of 550mA, 600mA, 650mA, 700mA, 750mA, 800mA, 850mA, 900mA, 950mA, or 1000mA is set by changing a combination of DIP switches.
HPC patented technology ensures all lights with this BOKE driver will be at the same brightness at any dimming level.
The ultra slimline linear design allows the BHL series to be mounted directly within LED linear light fittings. Whilst also suitable for general constant voltage LED applications.
This driver is a Class II design, meaning it can be mounted both internally; and externally of the light fitting with the use of optional end cover plates.
Boke’s BHL series has been manufactured with performance and high reliability at it’s core.
BOKE BK-BHL040-1000AD
Features
- User selectable output currents:
- Current: 550mA, Voltage: 3~42V, Max. power: 23.1W
- Current: 600mA, Voltage: 3~42V, Max. power: 25.2W
- Current: 650mA, Voltage: 3~42V, Max. power: 27.3W
- Current: 700mA, Voltage: 3~42V, Max. power: 29.4W
- Current: 750mA, Voltage: 3~42V, Max. power: 31.5W
- Current: 800mA, Voltage: 3~42V, Max. power: 33.6W
- Current: 850mA, Voltage: 3~42V, Max. power: 35.7W
- Current: 900mA, Voltage: 3~42V, Max. power: 37.8W
- Current: 950mA, Voltage: 3~42V, Max. power: 39.9W
- Current: 1000mA, Voltage: 3~40V, Max. power: 40.0W*
- DALI (DT6) PWM dimmable
- Flicker-free, 1~100% soft dimming (1% current accuracy)
- High PF, high efficiency, low THD
- Compact linear design (285x30x21mm)
- Short circuit & no-load protection
- 5 year warranty
*default factory set current
Specifications
OUTPUT | |
---|---|
Current / Voltage | 550mA (23.1W) / 3~42V | 600mA (25.2W) / 3~42V 650mA (27.3W) / 3~42V | 700mA (29.4W) / 3~42V 750mA (31.5W) / 3~42V | 800mA 33.6W) / 3~42V 850mA (35.7W) / 3~42V | 900mA (37.8W) / 3~42V 950mA (39.9W) / 3~42V | 1000mA (40.0W) / 3~40V |
INPUT | |
Voltage | 200 ∼ 240 VAC |
Current | <0.3 A (max) @ 220 VAC [Full Load] |
Inrush Current | 8.65 A (peak) 186us duration (50 % Ipeak) |
Leakage Current | <0.7 mA (max) @ 230 VAC |
Efficiency | 89% (typical) |
Power Factor | >0.95 (refer to PF vs Load Curve) |
THD | <10% (refer to THD vs Load Curve) |
CONTROL | |
On/Off, Dimming | DALI (DT6) |
Dimming Range | 1~100% |
Dimming Drive Mode | AM (amplitude modulation) |
Auxiliary Output | N/A |
CONNECTIONS | |
Input | Push terminals |
Output | Push terminals |
PROTECTIONS | |
Withstand Voltage | I/P-O/P:3750V AC |
Surge Protection | L-N:2KV |
Short Circuit | Recovers once fault removed |
ENVIRONMENT | |
Working Temperature | Tc = -20 ~ +60°C |
Working Humidity | 5 ~ 85% RH |
IP Rating | IP20 |

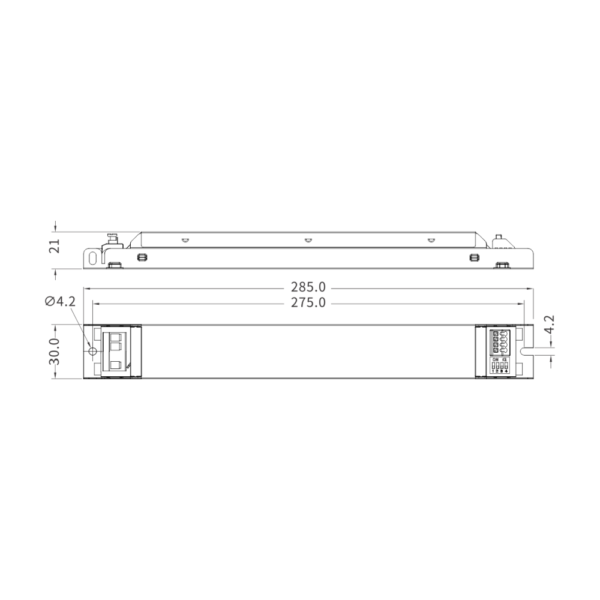

DIMENSIONS | |
L x W x H (24V) | 285 x 30 x 21 mm |
Weight | 206 g |
Carton Quantity | 35 pieces Carton: 8.51kg, 355 × 325 × 170mm (OEM) |
OTHER | |
Class | II |
Typical Lifetime | >100,000 hours (refer to Life vs Tc Curve) |
MTBF | 500,000H, MIL-HDBK-217F (25℃) |
Warranty | 5 Years |
Approvals | RCM (Australia) |
Unless specified, all tests were performed @ 25°C room temperature |
