Sign Module | Backlit | 1.2W 12V 6,500ºK IP68
41 in stock
Description
This LED 1.2W backlit sign module is designed to be mounted on the inside back wall of lightboxes and letters. The diffused lens with 160° beam angle allows for installation in SHALLOW signs with good light distribution. Eliminating bright and dark spots often found using standard backlighting methods.
Supplied in 6,500°K to give a crisp bright light.
An environmental rating of IP68 means that water ingress of the sign is not an issue.
Applications
- Sign and channel letter backlighting
- Outdoor lighting for advertising
Features
- Diffused lens creates a wider viewing angle
- ideal for SHALLOW light boxes
- High performance Samsung 2835 LEDs
- Efficient heat design, requires no heat-sink
- IP68
- Safe low voltage
- Long life, high reliability
- Double sided tape and screw mounting
Specifications
| Electrical Data | |
|---|---|
| Voltage | 12 VDC |
| Wattage module | 1.2 W |
| Current module | 10 mA |
| LED Data | |
| Package Type | 2835 |
| Chips LED | 1 |
| LEDs module | 3 |
| Photometric Data | |
| Colour Temperature | 6,500°K |
| Colour Rendering Index Ra | >80 |
| Luminous Flux module | 120 lm |
| Luminous Efficacey | 100 lm/W |
| Beam Angle | 160° |
| Dimmable | 1 ∼ 100% (refer data sheet) |
| Construction / Protection Data | |
| Package | ABS |
| Mounting | Double sided tape 3M Screws |
| IP Rating | IP68 |
| Operating Temperature | -30 ∼ +70 C° |
| Storage Temperature | -40 ∼ +75 C° |
| Dimensions (Module) | |
| Length | 66.0mm |
| Width | 15.0mm |
| Height | 11.0mm |
| Dimensions (String) | |
| Wire between modules | 90.0mm |
| Length | 7.8m (50 modules) |
| Lifetime | |
| Working Life | 50,0000 hrs |
Downloads
Contact us for photometric data and IES files

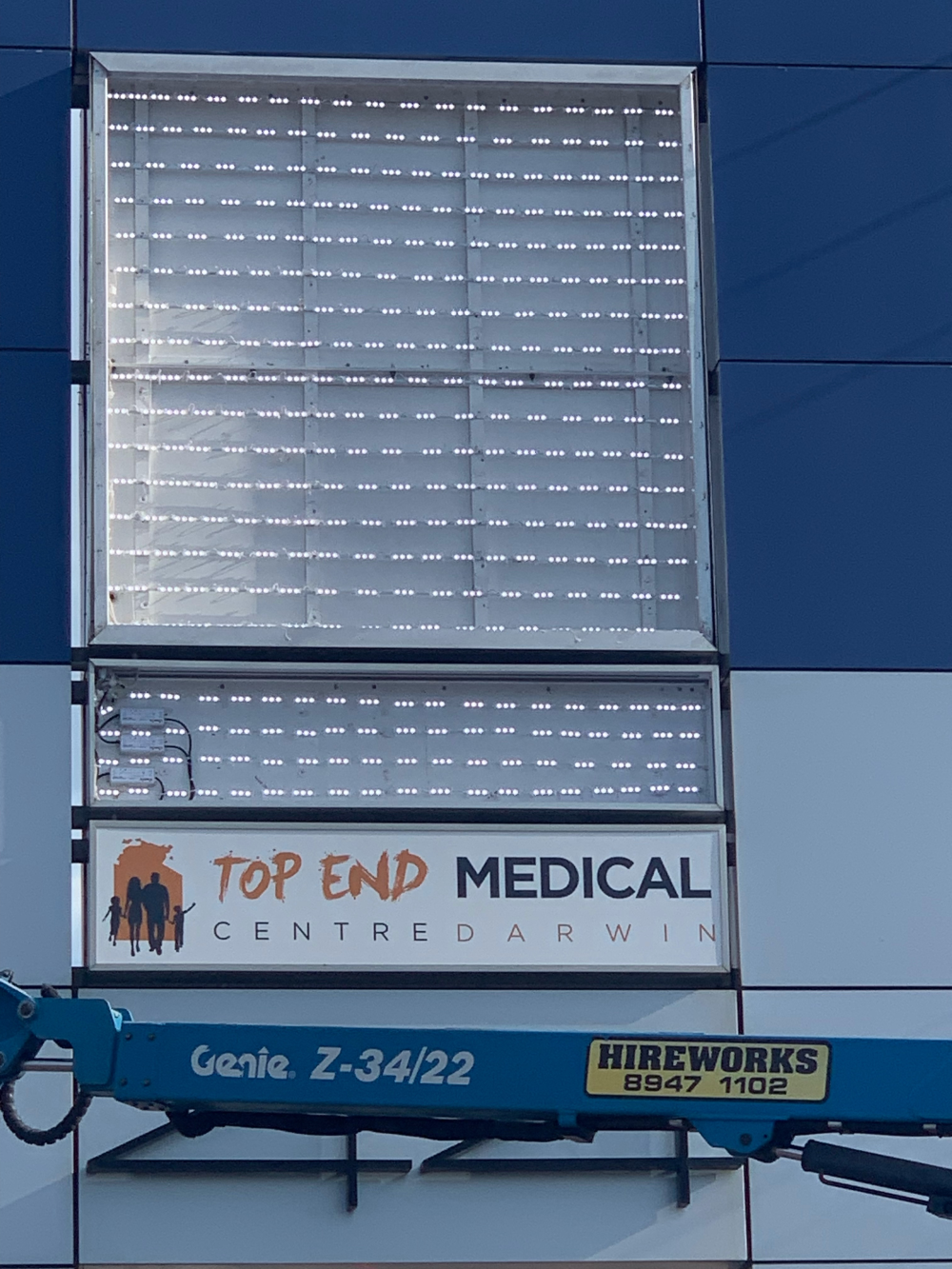

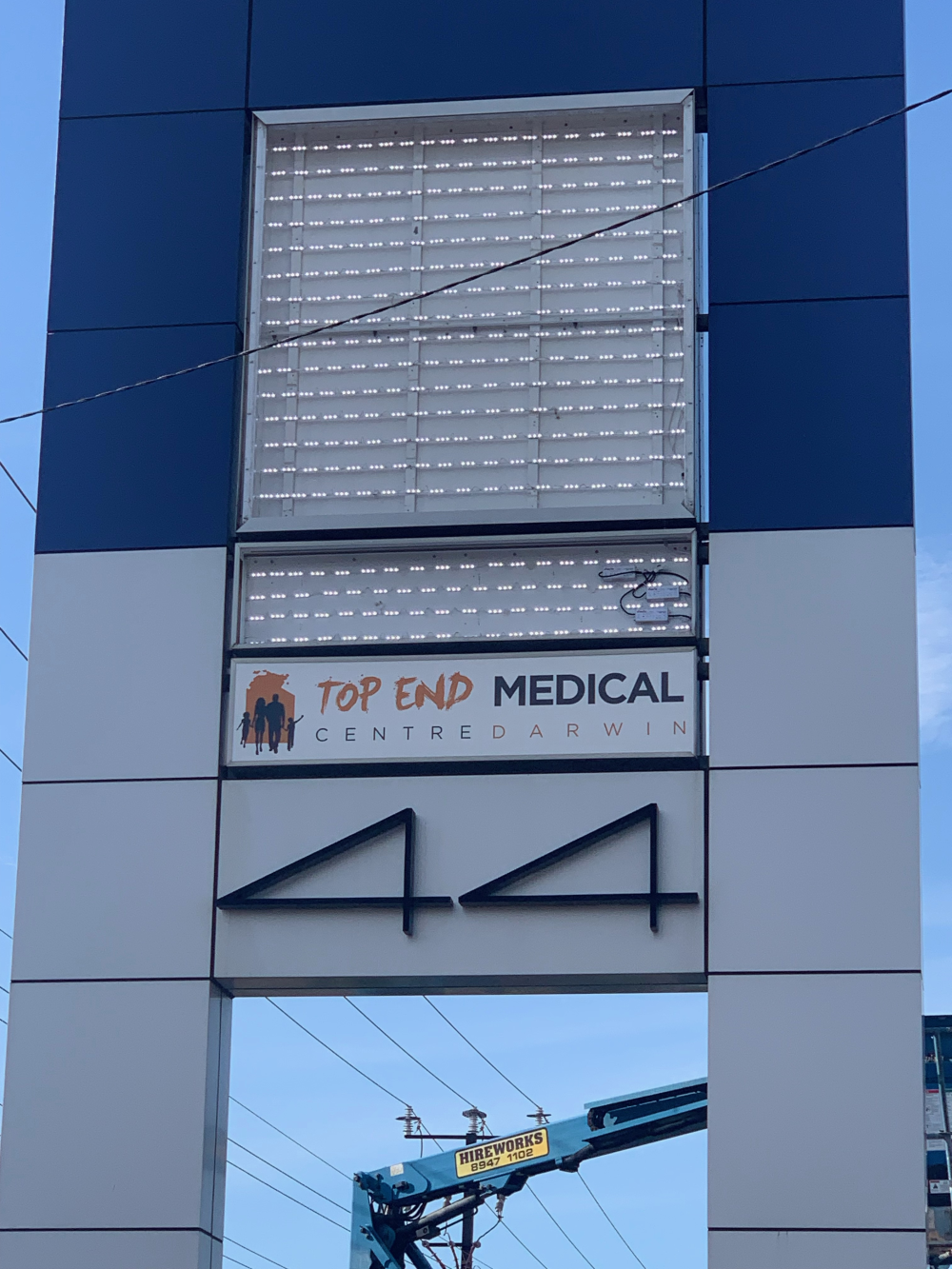

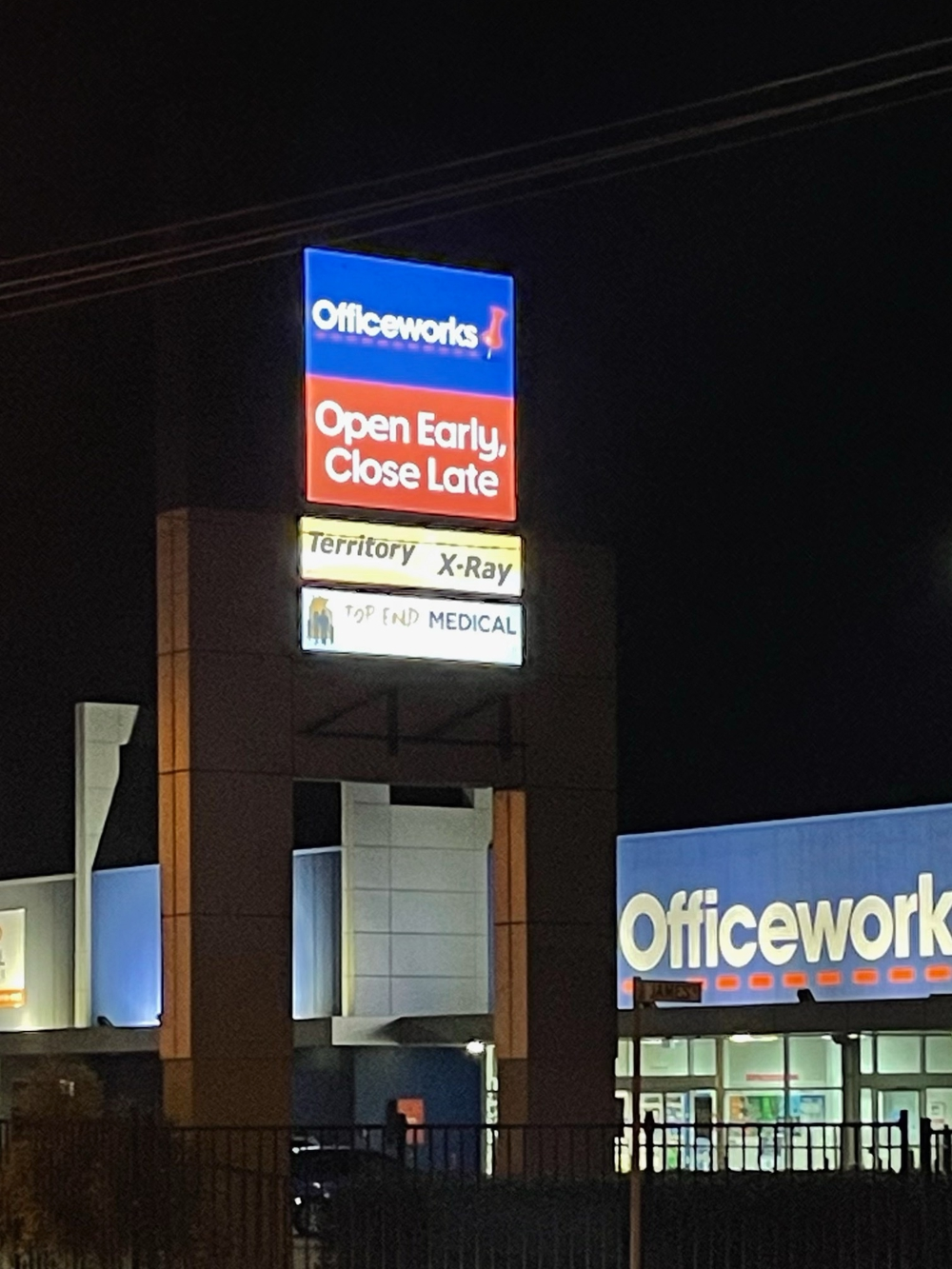

Installation Photos
